Schema documentation for component diggs:MWDResult

Showing:

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:MWDResult

Namespace

http://diggsml.org/schema-dev

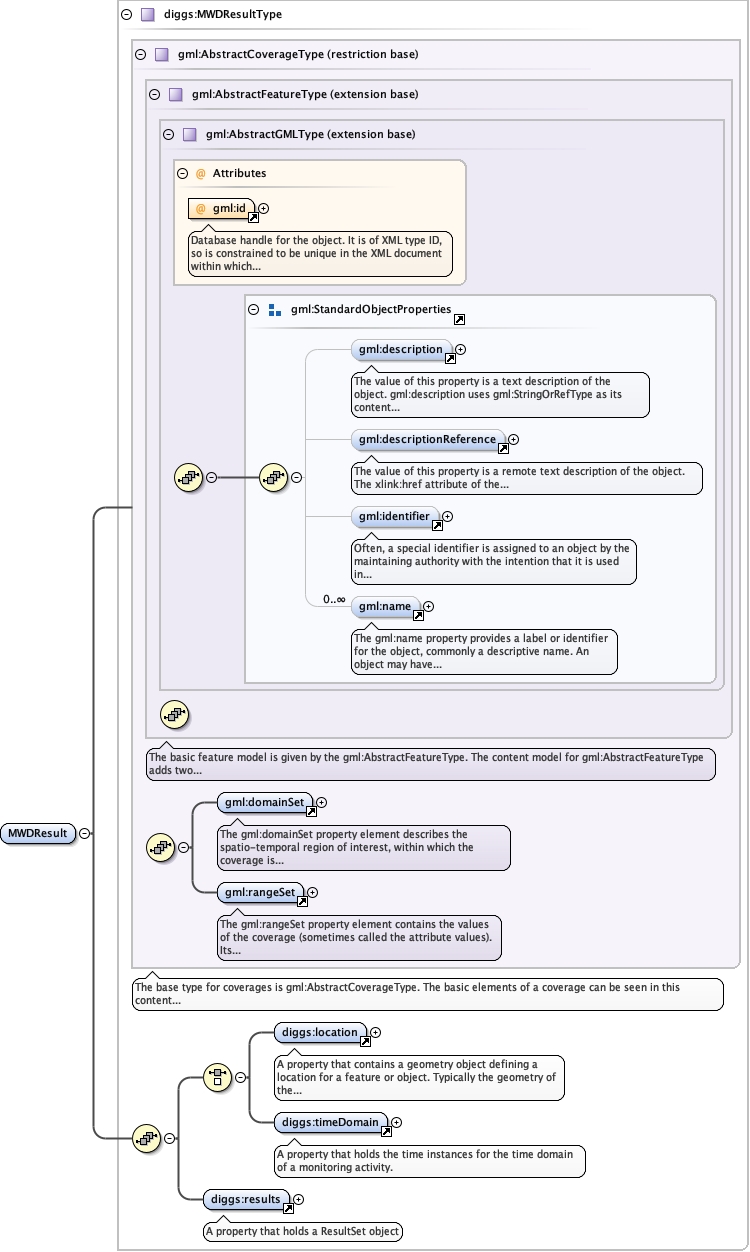

Diagram

Type

diggs:MWDResultType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:AbstractCoverageType
    - diggs:MWDResultType

Properties

content

complex

Used by

Complex Type

diggs:MWDResultPropertyType

Model

(diggs:location | diggs:timeDomain) , diggs:results

Children

diggs:location, diggs:results, diggs:timeDomain

Instance

<diggs:MWDResult gml:id="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:location>
  <diggs:timeDomain xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:timeDomain>
  <diggs:results>{1,1}</diggs:results>
</diggs:MWDResult>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="MWDResult" type="diggs:MWDResultType"/>
