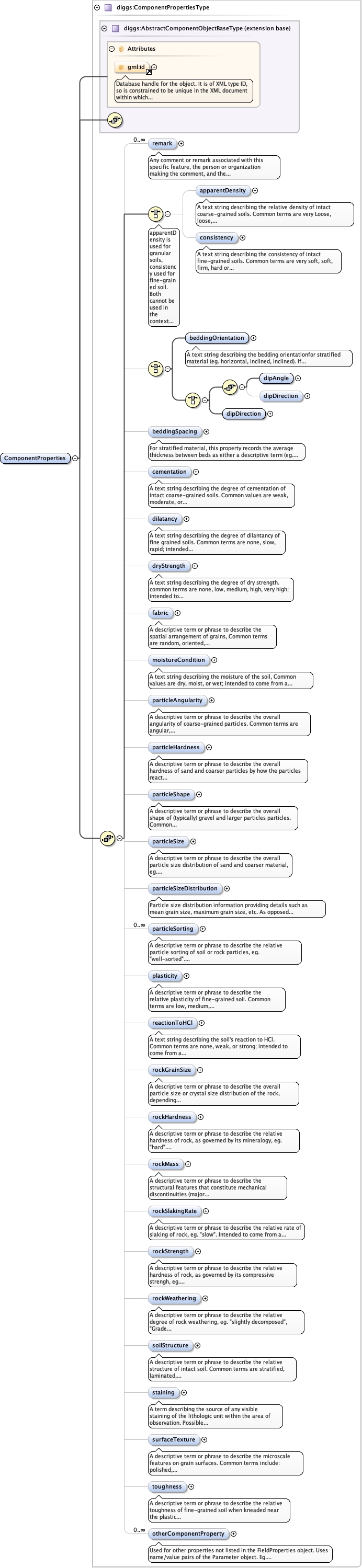

Schema documentation for component diggs:ComponentProperties

<diggs:ComponentProperties gml:id="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:apparentDensity codeSpace="">{0,1}</diggs:apparentDensity>
  <diggs:consistency codeSpace="">{0,1}</diggs:consistency>
  <diggs:beddingOrientation xml:lang="">{1,1}</diggs:beddingOrientation>
  <diggs:dipAngle apparent="" uom="">{1,1}</diggs:dipAngle>
  <diggs:dipDirection uom="">{0,1}</diggs:dipDirection>
  <diggs:dipDirection uom="">{1,1}</diggs:dipDirection>
  <diggs:beddingSpacing codeSpace="">{0,1}</diggs:beddingSpacing>
  <diggs:cementation codeSpace="">{0,1}</diggs:cementation>
  <diggs:dilatancy codeSpace="">{0,1}</diggs:dilatancy>
  <diggs:dryStrength codeSpace="">{0,1}</diggs:dryStrength>
  <diggs:fabric codeSpace="">{0,1}</diggs:fabric>
  <diggs:moistureCondition codeSpace="">{0,1}</diggs:moistureCondition>
  <diggs:particleAngularity codeSpace="">{0,1}</diggs:particleAngularity>
  <diggs:particleHardness codeSpace="" sizeClass="">{0,1}</diggs:particleHardness>
  <diggs:particleShape codeSpace="">{0,1}</diggs:particleShape>
  <diggs:particleSize codeSpace="">{0,1}</diggs:particleSize>
  <diggs:particleSizeDistribution>{0,1}</diggs:particleSizeDistribution>
  <diggs:particleSorting codeSpace="">{0,unbounded}</diggs:particleSorting>
  <diggs:plasticity codeSpace="">{0,1}</diggs:plasticity>
  <diggs:reactionToHCl codeSpace="">{0,1}</diggs:reactionToHCl>
  <diggs:rockGrainSize codeSpace="">{0,1}</diggs:rockGrainSize>
  <diggs:rockHardness codeSpace="">{0,1}</diggs:rockHardness>
  <diggs:rockMass codeSpace="">{0,1}</diggs:rockMass>
  <diggs:rockSlakingRate codeSpace="">{0,1}</diggs:rockSlakingRate>
  <diggs:rockStrength codeSpace="">{0,1}</diggs:rockStrength>
  <diggs:rockWeathering codeSpace="">{0,1}</diggs:rockWeathering>
  <diggs:soilStructure codeSpace="">{0,1}</diggs:soilStructure>
  <diggs:staining codeSpace="">{0,1}</diggs:staining>
  <diggs:surfaceTexture codeSpace="">{0,1}</diggs:surfaceTexture>
  <diggs:toughness codeSpace="">{0,1}</diggs:toughness>
  <diggs:otherComponentProperty>{0,unbounded}</diggs:otherComponentProperty>
</diggs:ComponentProperties>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
