Schema documentation for component diggs:AbstractObjectBase

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Element diggs:AbstractObjectBase

Namespace

http://diggsml.org/schema-dev

Annotations

Base type for AbstractObject - restricts gml:Object

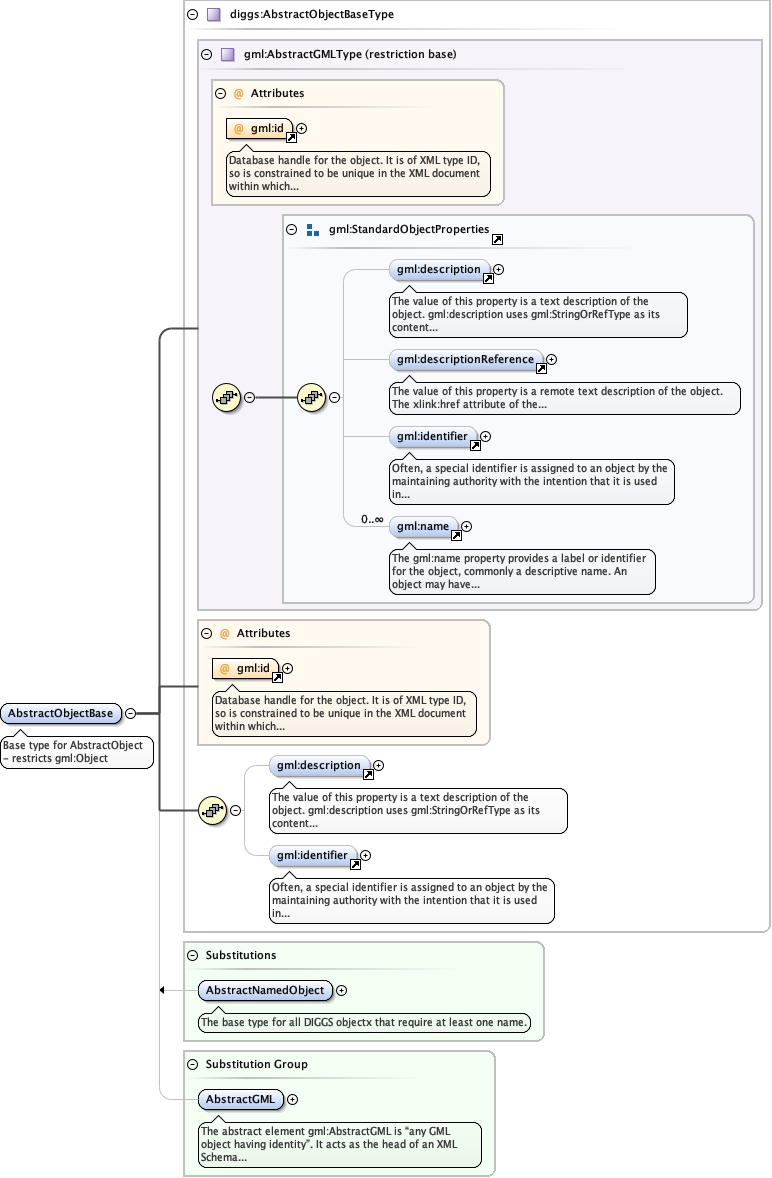

Diagram

Type

diggs:AbstractObjectBaseType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractObjectBaseType

Properties

content	complex
abstract	true

Substitution Group

Substitution Group Affiliation

gml:AbstractGML

Model

gml:description{0,1} , gml:identifier{0,1}

Children

gml:description, gml:identifier

Instance

<diggs:AbstractObjectBase gml:id="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
</diggs:AbstractObjectBase>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element abstract="true" name="AbstractObjectBase" substitutionGroup="gml:AbstractGML" type="diggs:AbstractObjectBaseType">
  <annotation>
    <documentation>Base type for AbstractObject - restricts gml:Object</documentation>
  </annotation>
</element>
