Schema documentation for component diggs:uncertainty

Showing:

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Element diggs:PolygonPatchType / diggs:uncertainty

Namespace

http://diggsml.org/schema-dev

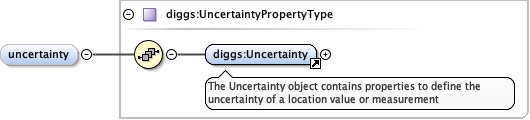

Diagram

Type

diggs:UncertaintyPropertyType

Properties

content	complex
minOccurs	0

Model

diggs:Uncertainty

Children

diggs:Uncertainty

Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Uncertainty gml:id="" xml:lang="">{1,1}</diggs:Uncertainty>
</diggs:uncertainty>

Source

<element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType"/>

Complex Type diggs:PolygonPatchType

Namespace

http://diggsml.org/schema-dev

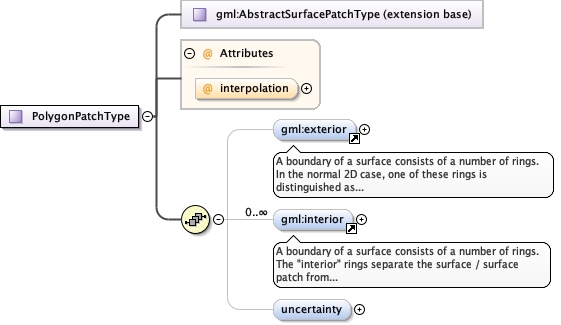

Diagram

Type

extension of gml:AbstractSurfacePatchType

Type hierarchy

gml:AbstractSurfacePatchType
- diggs:PolygonPatchType

Used by

Element

diggs:PolygonPatch

Model

gml:exterior{0,1} , gml:interior* , diggs:uncertainty{0,1}

Children

diggs:uncertainty, gml:exterior, gml:interior

Attributes

QName	Type	Fixed	Use
interpolation	gml:SurfaceInterpolationType	planar	optional

Source

<complexType name="PolygonPatchType">
  <complexContent>
    <extension base="gml:AbstractSurfacePatchType">
      <sequence>
        <element minOccurs="0" ref="gml:exterior"/>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:interior"/>
        <element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType"/>
      </sequence>
      <attribute fixed="planar" name="interpolation" type="gml:SurfaceInterpolationType"/>
    </extension>
  </complexContent>
</complexType>

Attribute diggs:PolygonPatchType / @interpolation

Namespace

No namespace

Type

gml:SurfaceInterpolationType

Properties

fixed

planar

Facets

enumeration	none
enumeration	planar
enumeration	spherical
enumeration	elliptical
enumeration	conic
enumeration	tin
enumeration	parametricCurve
enumeration	polynomialSpline
enumeration	rationalSpline
enumeration	triangulatedSpline

Used by

Complex Type

diggs:PolygonPatchType

Source

<attribute fixed="planar" name="interpolation" type="gml:SurfaceInterpolationType"/>
