Element diggs:PlacedObservationType / diggs:observation
Namespace http://diggsml.org/schema-dev
Annotations

A description of the lithologies that make up a
subsidiary portion of the overall lithologic classification of the
layer or sample, or exist as specific components of the
primarylithology property

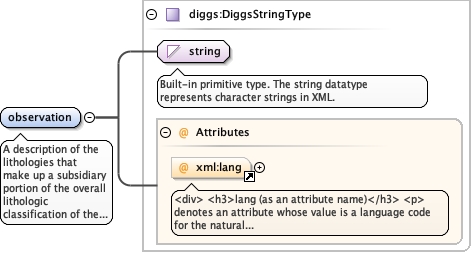

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 1
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="1" name="observation" type="diggs:DiggsStringType" maxOccurs="1">
  <annotation>
    <documentation>A description of the lithologies that make up a subsidiary portion of the overall lithologic classification of the layer or sample, or exist as specific components of the primarylithology property</documentation>
  </annotation>
</element>
Complex Type diggs:PlacedObservationType
Namespace http://diggsml.org/schema-dev

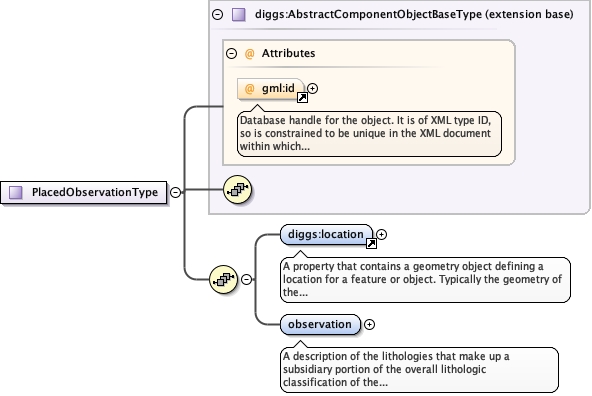

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_PlacedObservationType.tmp#PlacedObservationType_observation
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:location, diggs:observation
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PlacedObservationType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element ref="diggs:location"/>
        <element minOccurs="1" name="observation" type="diggs:DiggsStringType" maxOccurs="1">
          <annotation>
            <documentation>A description of the lithologies that make up a subsidiary portion of the overall lithologic classification of the layer or sample, or exist as specific components of the primarylithology property</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
