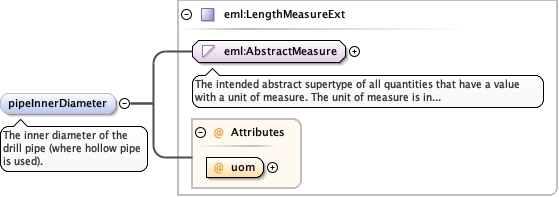

Element diggs:DrillPipeType / diggs:pipeInnerDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The inner diameter of the drill pipe (where hollow pipe
is used).
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="pipeInnerDiameter" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The inner diameter of the drill pipe (where hollow pipe is used).</documentation>
  </annotation>
</element>

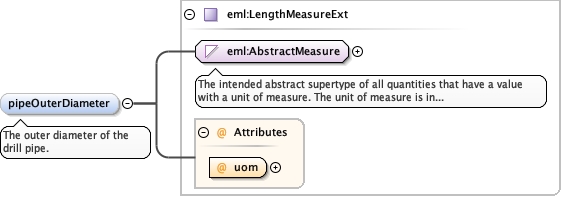

Element diggs:DrillPipeType / diggs:pipeOuterDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The outer diameter of the drill pipe.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="pipeOuterDiameter" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The outer diameter of the drill pipe.</documentation>
  </annotation>
</element>

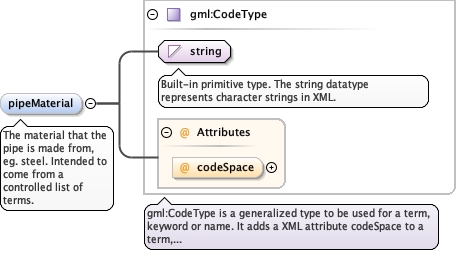

Element diggs:DrillPipeType / diggs:pipeMaterial
Namespace http://diggsml.org/schema-dev
Annotations

The material that the pipe is made from, eg. steel.
Intended to come from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pipeMaterial" type="gml:CodeType">
  <annotation>
    <documentation>The material that the pipe is made from, eg. steel. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

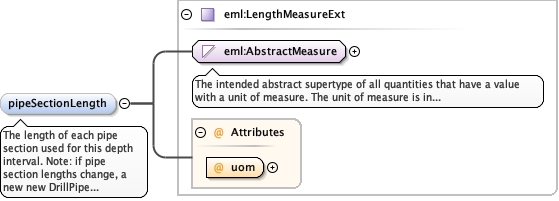

Element diggs:DrillPipeType / diggs:pipeSectionLength
Namespace http://diggsml.org/schema-dev
Annotations

The length of each pipe section used for this depth
interval. Note: if pipe section lengths change, a new new DrillPipe
object should be instantiated to identify the depth interval for the
new pipe section length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="pipeSectionLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The length of each pipe section used for this depth interval. Note: if pipe section lengths change, a new new DrillPipe object should be instantiated to identify the depth interval for the new pipe section length.</documentation>
  </annotation>
</element>

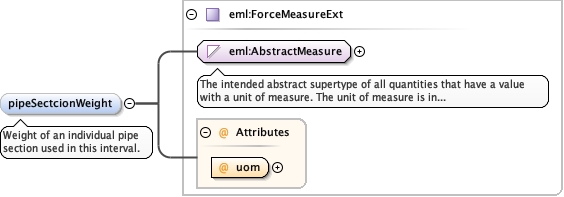

Element diggs:DrillPipeType / diggs:pipeSectcionWeight
Namespace http://diggsml.org/schema-dev
Annotations

Weight of an individual pipe section used in this
interval.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="pipeSectcionWeight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>Weight of an individual pipe section used in this interval.</documentation>
  </annotation>
</element>

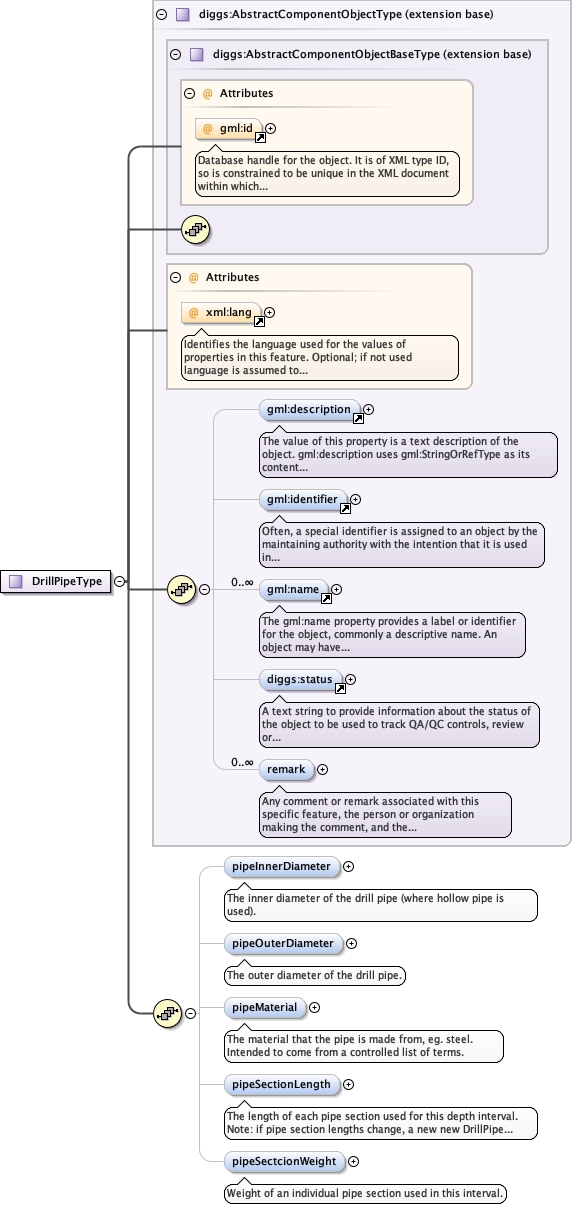

Complex Type diggs:DrillPipeType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeKernel_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeInnerDiameterKernel_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeOuterDiameterKernel_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeMaterialKernel_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeSectionLengthKernel_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeSectcionWeight
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Element diggs:DrillPipe
Model
Children diggs:pipeInnerDiameter, diggs:pipeMaterial, diggs:pipeOuterDiameter, diggs:pipeSectcionWeight, diggs:pipeSectionLength, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DrillPipeType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element minOccurs="0" name="pipeInnerDiameter" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The inner diameter of the drill pipe (where hollow pipe is used).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pipeOuterDiameter" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The outer diameter of the drill pipe.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pipeMaterial" type="gml:CodeType">
          <annotation>
            <documentation>The material that the pipe is made from, eg. steel. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pipeSectionLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The length of each pipe section used for this depth interval. Note: if pipe section lengths change, a new new DrillPipe object should be instantiated to identify the depth interval for the new pipe section length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pipeSectcionWeight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>Weight of an individual pipe section used in this interval.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
