Schema documentation for component diggs:VolumePropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:VolumePropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains an object that substitutes for diggs:AbstractVolume
inline, or refers to one with xlink:href.

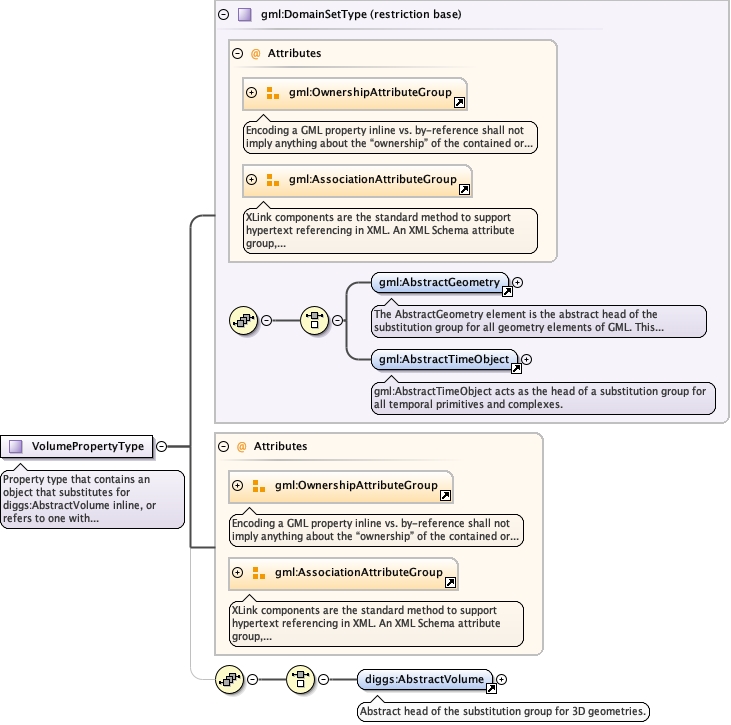

Diagram

Type

restriction of gml:DomainSetType

Type hierarchy

gml:DomainSetType
- diggs:VolumePropertyType

Used by

Elements

diggs:AbstractVolumeSamplingFeatureType/diggs:featureExtent, diggs:relativeFeatureExtent

Model

(diggs:AbstractVolume)

Children

diggs:AbstractVolume

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="VolumePropertyType">
  <annotation>
    <documentation>Property type that contains an object that substitutes for diggs:AbstractVolume inline, or refers to one with xlink:href.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:DomainSetType">
      <sequence minOccurs="0">
        <choice>
          <element ref="diggs:AbstractVolume"/>
        </choice>
      </sequence>
      <attributeGroup ref="gml:OwnershipAttributeGroup"/>
      <attributeGroup ref="gml:AssociationAttributeGroup"/>
    </restriction>
  </complexContent>
</complexType>
