Schema documentation for component diggs:Definition

Showing:

Attributes

Diagrams

Instances

Model

Properties

Source

Element diggs:Definition

Namespace

http://diggsml.org/schema-dev

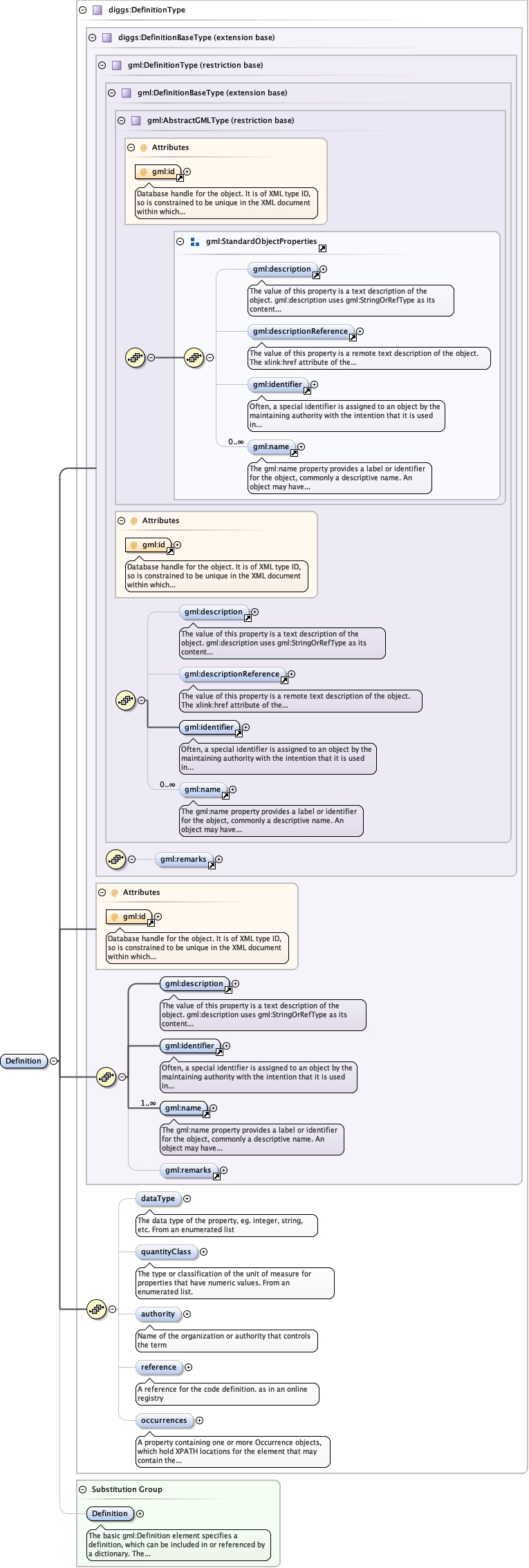

Diagram

Type

diggs:DefinitionType

Type hierarchy

gml:AbstractGMLType
- gml:DefinitionBaseType
  - gml:DefinitionType
    - diggs:DefinitionBaseType
      - diggs:DefinitionType

Properties

content	complex
abstract	false

Substitution Group Affiliation

gml:Definition

Model

gml:description , gml:identifier , gml:name+ , gml:remarks{0,1} , diggs:dataType{0,1} , diggs:quantityClass{0,1} , diggs:authority{0,1} , diggs:reference{0,1} , diggs:occurrences{0,1}

Children

diggs:authority, diggs:dataType, diggs:occurrences, diggs:quantityClass, diggs:reference, gml:description, gml:identifier, gml:name, gml:remarks

Instance

<diggs:Definition gml:id="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:description>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <diggs:dataType>{0,1}</diggs:dataType>
  <diggs:quantityClass>{0,1}</diggs:quantityClass>
  <diggs:authority>{0,1}</diggs:authority>
  <diggs:reference>{0,1}</diggs:reference>
  <diggs:occurrences>{0,1}</diggs:occurrences>
</diggs:Definition>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="Definition" substitutionGroup="gml:Definition" abstract="false" type="diggs:DefinitionType">
</element>
