Element diggs:TimeIntervalList
Namespace http://diggsml.org/schemas/3
Annotations

A time object that contains a list of time intervals (durations or elapsed times)
expressed as decimal values. The unit attribute gives the time unit of the list.

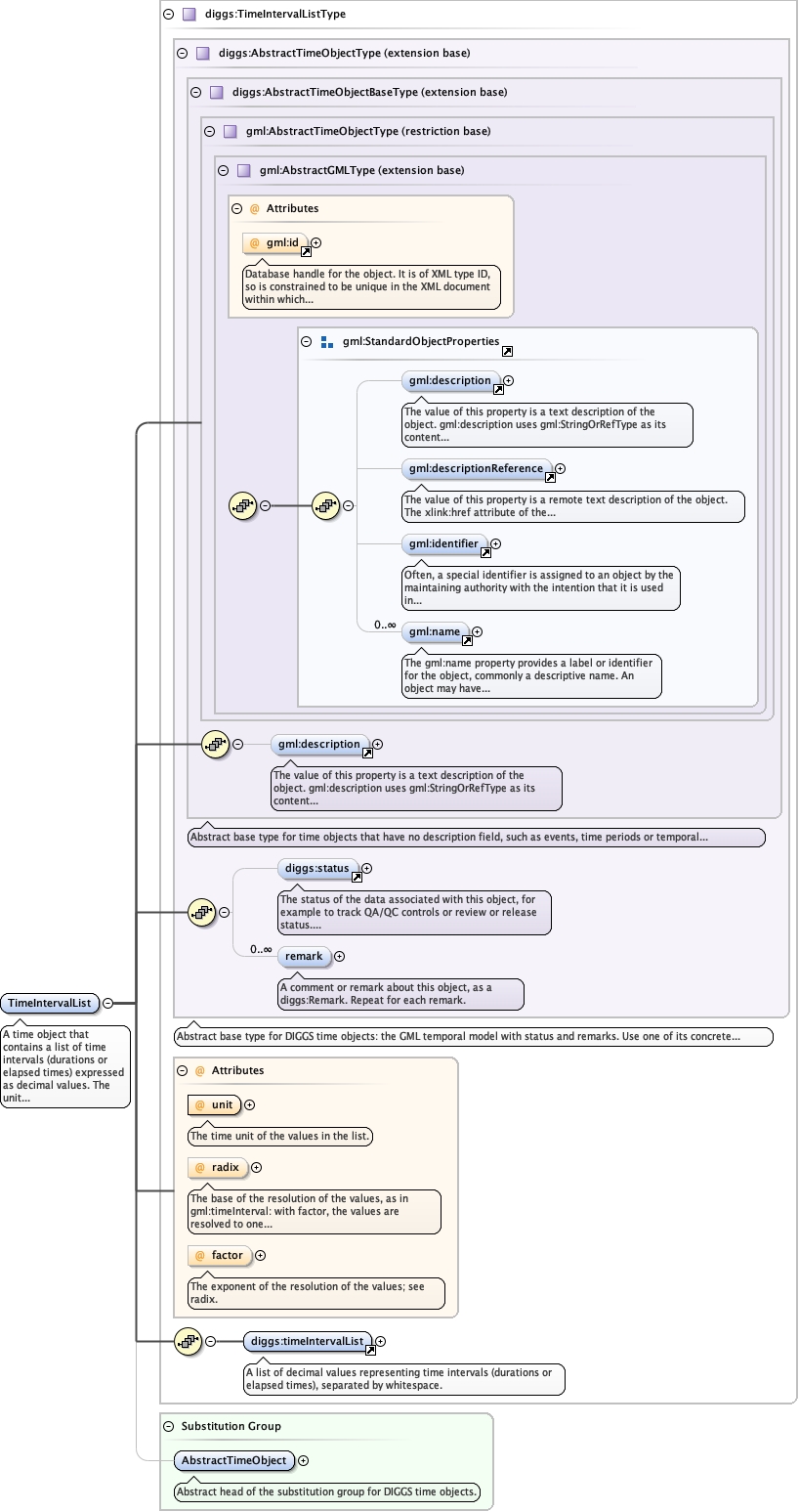

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractTimeObjectType.tmp#AbstractTimeObjectTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionCore_xsd_Complex_Type_diggs_AbstractTimeObjectBaseType.tmp#AbstractTimeObjectBaseTypeCommon_xsd_Element_diggs_status.tmp#statusCore_xsd_Complex_Type_diggs_AbstractTimeObjectType.tmp#http___diggsml.org_schemas_3_AbstractTimeObjectType_remarkCore_xsd_Complex_Type_diggs_AbstractTimeObjectType.tmp#http___diggsml.org_schemas_3_AbstractTimeObjectTypeCore_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_unitCore_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_radixCore_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_factorCore_xsd_Element_diggs_timeIntervalList_1.tmp#http___diggsml.org_schemas_3_timeIntervalListCore_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListTypeCore_xsd_Element_diggs_AbstractTimeObject.tmp#http___diggsml.org_schemas_3_AbstractTimeObject
Type diggs:TimeIntervalListType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:remark, diggs:status, diggs:timeIntervalList, gml:description
Instance

<diggs:TimeIntervalList factor="" gml:id="" radix="" unit="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:timeIntervalList>{1,1}</diggs:timeIntervalList>
</diggs:TimeIntervalList>
Attributes
QName Type Use Annotation
factor integer optional
The exponent of the resolution of the values; see radix.
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
radix positiveInteger optional
The base of the resolution of the values, as in gml:timeInterval: with
factor, the values are resolved to one radix^(-factor) of the unit. For
example unit second, radix 10 and factor 3 give a resolution of one
millisecond.
unit gml:TimeUnitType required
The time unit of the values in the list.
Source

<element name="TimeIntervalList" substitutionGroup="diggs:AbstractTimeObject" type="diggs:TimeIntervalListType">
  <annotation>
    <documentation>A time object that contains a list of time intervals (durations or elapsed times) expressed as decimal values. The unit attribute gives the time unit of the list.</documentation>
  </annotation>
</element>
