Element diggs:DocumentInformation
Namespace http://diggsml.org/schemas/3
Annotations

Metadata about the DIGGS instance document itself: who created it, when, with what
software, and for whom.

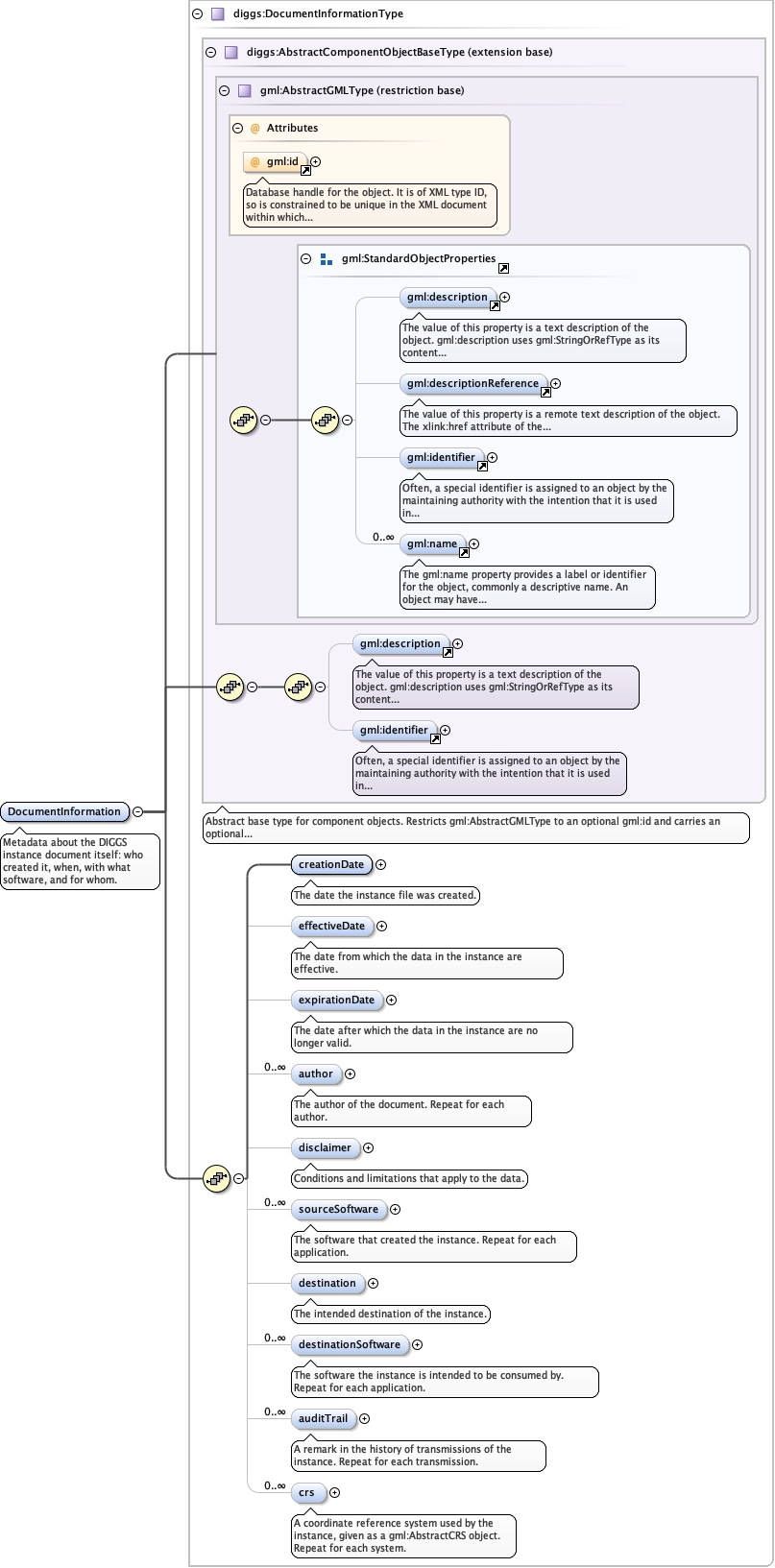

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_creationDateCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_effectiveDateCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_expirationDateCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_authorCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_disclaimerCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_sourceSoftwareCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_destinationCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_destinationSoftwareCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_auditTrailCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType_crsCore_xsd_Complex_Type_diggs_DocumentInformationType.tmp#DocumentInformationType
Type diggs:DocumentInformationType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:auditTrail, diggs:author, diggs:creationDate, diggs:crs, diggs:destination, diggs:destinationSoftware, diggs:disclaimer, diggs:effectiveDate, diggs:expirationDate, diggs:sourceSoftware, gml:description, gml:identifier
Instance

<diggs:DocumentInformation gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:creationDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:creationDate>
  <diggs:effectiveDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:effectiveDate>
  <diggs:expirationDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:expirationDate>
  <diggs:author xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:author>
  <diggs:disclaimer>{0,1}</diggs:disclaimer>
  <diggs:sourceSoftware xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:sourceSoftware>
  <diggs:destination>{0,1}</diggs:destination>
  <diggs:destinationSoftware xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:destinationSoftware>
  <diggs:auditTrail>{0,unbounded}</diggs:auditTrail>
  <diggs:crs>{0,unbounded}</diggs:crs>
</diggs:DocumentInformation>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DocumentInformation" type="diggs:DocumentInformationType" abstract="false">
  <annotation>
    <documentation>Metadata about the DIGGS instance document itself: who created it, when, with what software, and for whom.</documentation>
  </annotation>
</element>
