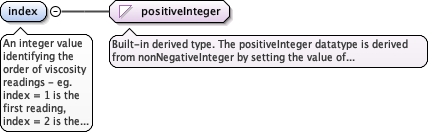

Element diggs:ViscosityReadingType / diggs:index
Namespace http://diggsml.org/schema-dev
Annotations

An integer value identifying the order of viscosity
readings - eg. index = 1 is the first reading, index = 2 is the
second, etc.
Diagram
Diagram
Type positiveInteger
Properties
content simple
Source

<element name="index" type="positiveInteger">
  <annotation>
    <documentation>An integer value identifying the order of viscosity readings - eg. index = 1 is the first reading, index = 2 is the second, etc.</documentation>
  </annotation>
</element>

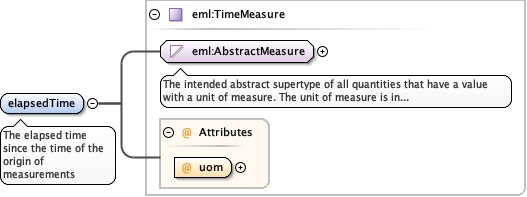

Element diggs:ViscosityReadingType / diggs:elapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

The elapsed time since the time of the origin of
measurements
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>The elapsed time since the time of the origin of measurements</documentation>
  </annotation>
</element>

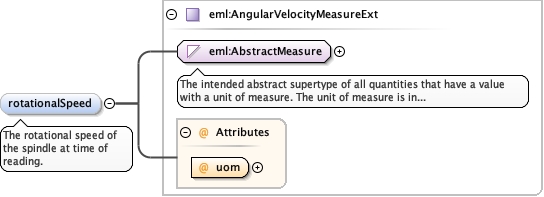

Element diggs:ViscosityReadingType / diggs:rotationalSpeed
Namespace http://diggsml.org/schema-dev
Annotations

The rotational speed of the spindle at time of
reading.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasureExt.tmp#AngularVelocityMeasureExt_uomMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasureExt.tmp#AngularVelocityMeasureExt
Type eml:AngularVelocityMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AngularVelocityUomExt required
Source

<element minOccurs="0" name="rotationalSpeed" type="eml:AngularVelocityMeasureExt">
  <annotation>
    <documentation>The rotational speed of the spindle at time of reading.</documentation>
  </annotation>
</element>

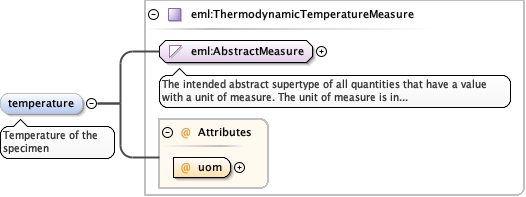

Element diggs:ViscosityReadingType / diggs:temperature
Namespace http://diggsml.org/schema-dev
Annotations

Temperature of the specimen
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element minOccurs="0" name="temperature" type="eml:ThermodynamicTemperatureMeasure">
  <annotation>
    <documentation>Temperature of the specimen</documentation>
  </annotation>
</element>

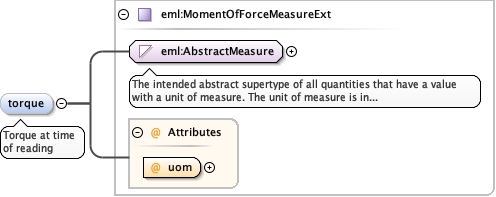

Element diggs:ViscosityReadingType / diggs:torque
Namespace http://diggsml.org/schema-dev
Annotations

Torque at time of reading
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt
Type eml:MomentOfForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUomExt required
Source

<element minOccurs="0" name="torque" type="eml:MomentOfForceMeasureExt">
  <annotation>
    <documentation>Torque at time of reading</documentation>
  </annotation>
</element>

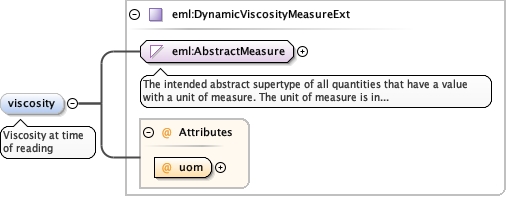

Element diggs:ViscosityReadingType / diggs:viscosity
Namespace http://diggsml.org/schema-dev
Annotations

Viscosity at time of reading
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DynamicViscosityMeasureExt.tmp#DynamicViscosityMeasureExt_uomMeasureType_xsd_Complex_Type_eml_DynamicViscosityMeasureExt.tmp#DynamicViscosityMeasureExt
Type eml:DynamicViscosityMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DynamicViscosityUomExt required
Source

<element minOccurs="0" name="viscosity" type="eml:DynamicViscosityMeasureExt">
  <annotation>
    <documentation>Viscosity at time of reading</documentation>
  </annotation>
</element>

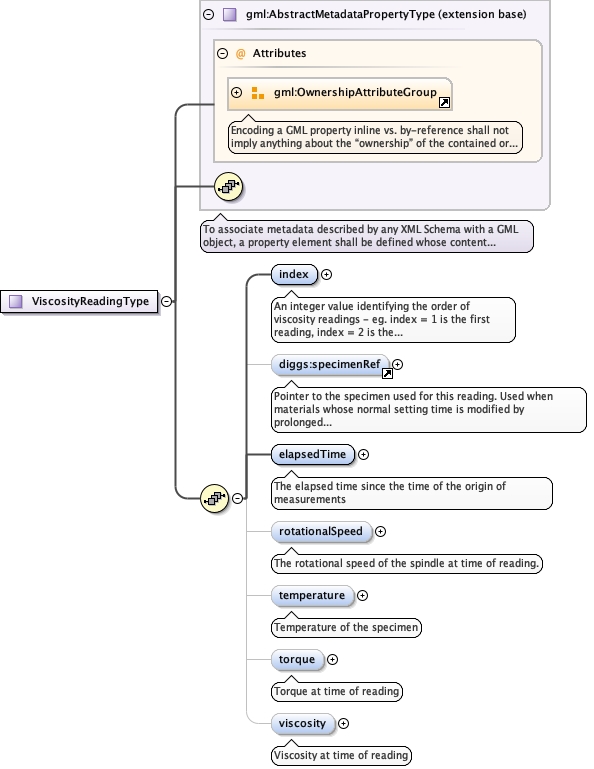

Complex Type diggs:ViscosityReadingType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_indexKernel_xsd_Element_diggs_specimenRef.tmp#specimenRefConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_elapsedTimeConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_rotationalSpeedConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_temperatureConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_torqueConstruction_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_viscosity
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:elapsedTime, diggs:index, diggs:rotationalSpeed, diggs:specimenRef, diggs:temperature, diggs:torque, diggs:viscosity
Attributes
QName Type Default Use
owns boolean false optional
Source

<complexType name="ViscosityReadingType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element name="index" type="positiveInteger">
          <annotation>
            <documentation>An integer value identifying the order of viscosity readings - eg. index = 1 is the first reading, index = 2 is the second, etc.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:specimenRef">
          <annotation>
            <documentation>Pointer to the specimen used for this reading. Used when materials whose normal setting time is modified by prolonged agitation (this includes many silicate and acrylamide grouts). In this case, only one reading per specimen is taken, and multiple specimen properties are included in this procedure that are then used to define the viscosity-time data.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>The elapsed time since the time of the origin of measurements</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rotationalSpeed" type="eml:AngularVelocityMeasureExt">
          <annotation>
            <documentation>The rotational speed of the spindle at time of reading.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="temperature" type="eml:ThermodynamicTemperatureMeasure">
          <annotation>
            <documentation>Temperature of the specimen</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torque" type="eml:MomentOfForceMeasureExt">
          <annotation>
            <documentation>Torque at time of reading</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="viscosity" type="eml:DynamicViscosityMeasureExt">
          <annotation>
            <documentation>Viscosity at time of reading</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
