Element diggs:properties
Namespace http://diggsml.org/schemas/3
Annotations

A sequence of Property objects that hold the measured properties of a test or
monitoring activity.

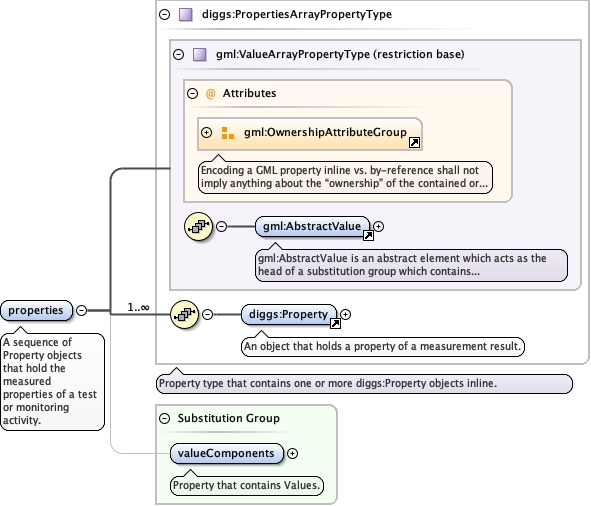

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractValue.tmp#AbstractValuegml3_2Profile_diggs_xsd_Complex_Type_gml_ValueArrayPropertyType.tmp#ValueArrayPropertyTypeCommon_xsd_Element_diggs_Property.tmp#PropertyCommon_xsd_Complex_Type_diggs_PropertiesArrayPropertyType.tmp#PropertiesArrayPropertyTypegml3_2Profile_diggs_xsd_Element_gml_valueComponents.tmp#valueComponents
Type diggs:PropertiesArrayPropertyType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:Property
Instance

<diggs:properties owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Property gml:id="" index="">{1,1}</diggs:Property>
</diggs:properties>
Attributes
QName Type Default Use
owns boolean false optional
Source

<element name="properties" substitutionGroup="gml:valueComponents" type="diggs:PropertiesArrayPropertyType">
  <annotation>
    <documentation>A sequence of Property objects that hold the measured properties of a test or monitoring activity.</documentation>
  </annotation>
</element>
