Element diggs:DesignFactor
Namespace http://diggsml.org/schemas/3
Annotations

An AuthorizedParameter that additionally states what the value is applied to: a
partial or global safety factor, or a material reduction factor. It names both the
factor itself (parameterName, dictionary-bound) and the action, material, resistance
or property it modifies (appliesTo). Used for the partial or global factor set a
design's safety format applies, and for geosynthetic reduction factors and material
factors. The factor and what it applies to are two fields because the same partial
factor concept, such as a resistance factor, takes different values depending on
what it is applied to; combining them in one dictionary entry name would multiply
entries across every standard and factor category.

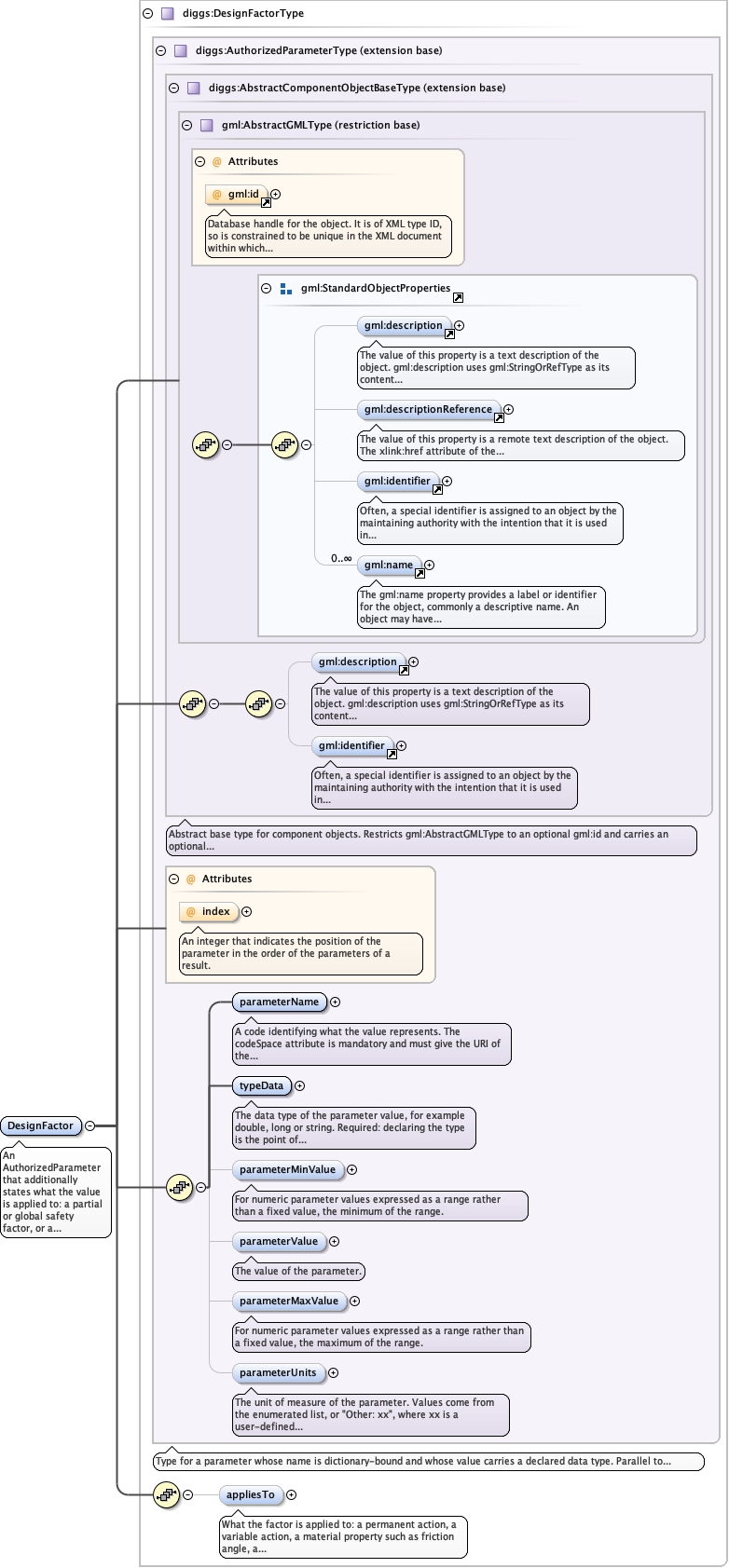

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_indexCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterNameCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_typeDataCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMinValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMaxValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterUnitsCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterTypeCommon_xsd_Complex_Type_diggs_DesignFactorType.tmp#DesignFactorType_appliesToCommon_xsd_Complex_Type_diggs_DesignFactorType.tmp#DesignFactorType
Type diggs:DesignFactorType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:appliesTo, diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue, diggs:typeData, gml:description, gml:identifier
Instance

<diggs:DesignFactor gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:parameterName codeSpace="">{1,1}</diggs:parameterName>
  <diggs:typeData>{1,1}</diggs:typeData>
  <diggs:parameterMinValue>{0,1}</diggs:parameterMinValue>
  <diggs:parameterValue>{0,1}</diggs:parameterValue>
  <diggs:parameterMaxValue>{0,1}</diggs:parameterMaxValue>
  <diggs:parameterUnits>{0,1}</diggs:parameterUnits>
  <diggs:appliesTo codeSpace="">{0,1}</diggs:appliesTo>
</diggs:DesignFactor>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger optional
An integer that indicates the position of the parameter in the order of
the parameters of a result.
Source

<element name="DesignFactor" type="diggs:DesignFactorType">
  <annotation>
    <documentation>An AuthorizedParameter that additionally states what the value is applied to: a partial or global safety factor, or a material reduction factor. It names both the factor itself (parameterName, dictionary-bound) and the action, material, resistance or property it modifies (appliesTo). Used for the partial or global factor set a design's safety format applies, and for geosynthetic reduction factors and material factors. The factor and what it applies to are two fields because the same partial factor concept, such as a resistance factor, takes different values depending on what it is applied to; combining them in one dictionary entry name would multiply entries across every standard and factor category.</documentation>
  </annotation>
</element>
