Schema documentation for component diggs:PropertyInfoPropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:PropertyInfoPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains, or refers to, a diggs:PropertyParameters object.

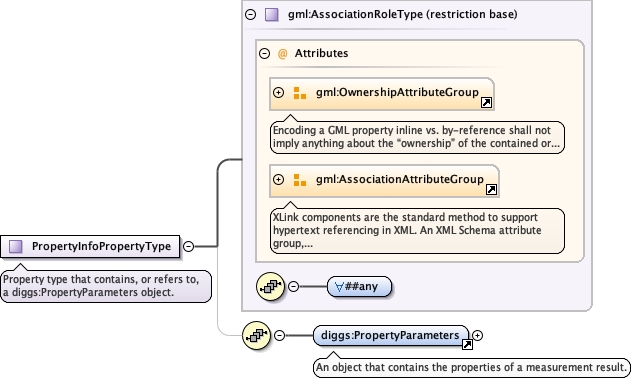

Diagram

Type

restriction of gml:AssociationRoleType

Type hierarchy

gml:AssociationRoleType
- diggs:PropertyInfoPropertyType

Used by

Element

diggs:parameters

Model

diggs:PropertyParameters

Children

diggs:PropertyParameters

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="PropertyInfoPropertyType">
  <annotation>
    <documentation>Property type that contains, or refers to, a diggs:PropertyParameters object.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:AssociationRoleType">
      <sequence minOccurs="0">
        <element ref="diggs:PropertyParameters"/>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
