Element gml:DataBlock
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:DataBlock describes the Range as a block of text encoded values similar to
a Common Separated Value (CSV) representation. The range set parameterization is described
by the property gml:rangeParameters.

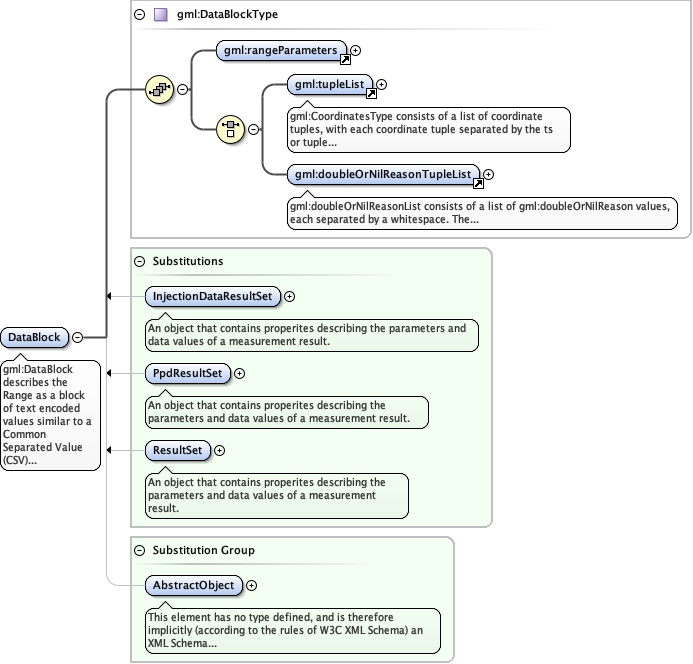

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_rangeParameters.tmp#rangeParametersgml3_2Profile_diggs_xsd_Element_gml_tupleList.tmp#tupleListgml3_2Profile_diggs_xsd_Element_gml_doubleOrNilReasonTupleList.tmp#doubleOrNilReasonTupleListgml3_2Profile_diggs_xsd_Complex_Type_gml_DataBlockType.tmp#DataBlockTypeGrouting_xsd_Element_diggs_InjectionDataResultSet.tmp#InjectionDataResultSetDiggs_geo_deprecated_xsd_Element_diggs_geo_PpdResultSet.tmp#PpdResultSetCommon_xsd_Element_diggs_ResultSet.tmp#ResultSetgml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type gml:DataBlockType
Properties
content complex
Substitution Group
Substitution Group Affiliation
Used by
Complex Type gml:RangeSetType
Model
Children gml:doubleOrNilReasonTupleList, gml:rangeParameters, gml:tupleList
Instance

<gml:DataBlock xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:rangeParameters xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:rangeParameters>
  <gml:tupleList cs="," decimal="." ts=" ">{1,1}</gml:tupleList>
  <gml:doubleOrNilReasonTupleList>{1,1}</gml:doubleOrNilReasonTupleList>
</gml:DataBlock>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
