Namespace http://www.opengis.net/gml/3.2
Annotations
gml:EngineeringCRS is a contextually local coordinate reference system which
can be divided into two broad categories: - earth-fixed systems applied to engineering
activities on or near the surface of the earth; - CRSs on moving platforms such as road
vehicles, vessels, aircraft, or spacecraft, see ISO 19111 8.3.

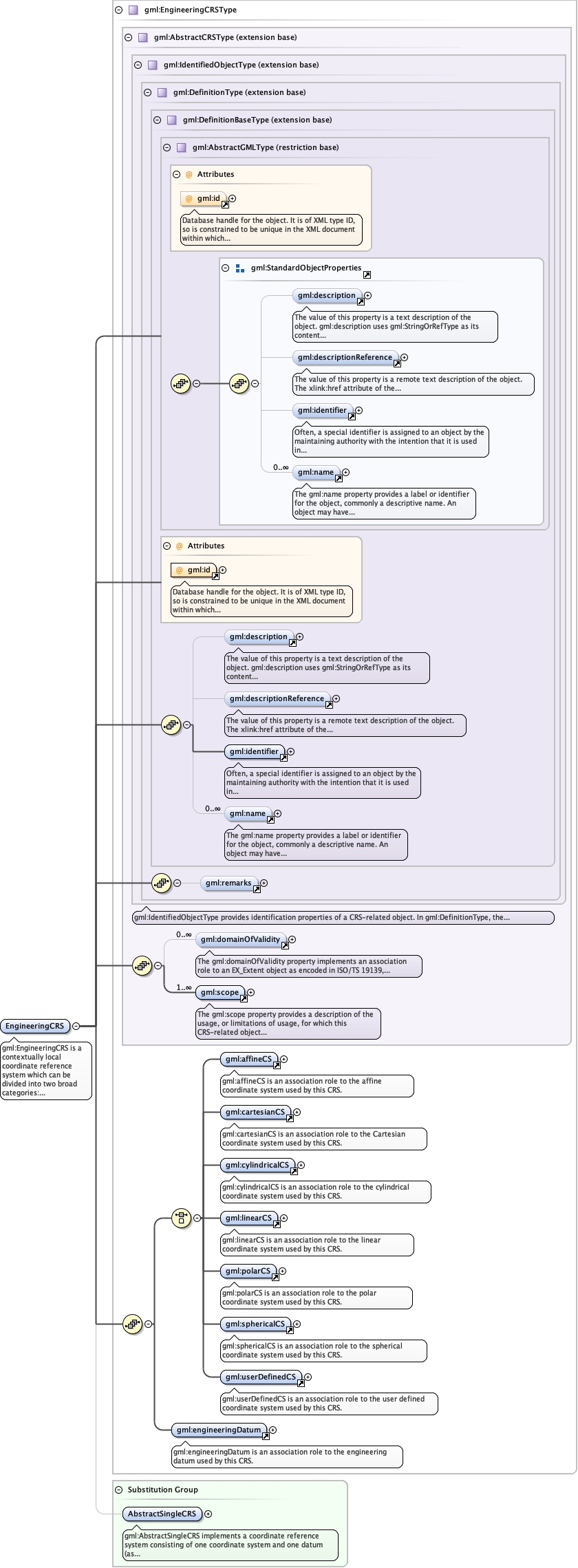

Diagram
Type gml:EngineeringCRSType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity* ,
gml:scope+ , (
gml:affineCS |
gml:cartesianCS |
gml:cylindricalCS |
gml:linearCS |
gml:polarCS |
gml:sphericalCS |
gml:userDefinedCS ) ,
gml:engineeringDatum
Children gml:affineCS gml:cartesianCS gml:cylindricalCS gml:description gml:descriptionReference gml:domainOfValidity gml:engineeringDatum gml:identifier gml:linearCS gml:name gml:polarCS gml:remarks gml:scope gml:sphericalCS gml:userDefinedCS
Instance
<gml:EngineeringCRS gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:domainOfValidity xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:domainOfValidity>
<gml:scope > {1,unbounded} </gml:scope>
<gml:affineCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:affineCS>
<gml:cartesianCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:cartesianCS>
<gml:cylindricalCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:cylindricalCS>
<gml:linearCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:linearCS>
<gml:polarCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:polarCS>
<gml:sphericalCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:sphericalCS>
<gml:userDefinedCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:userDefinedCS>
<gml:engineeringDatum xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:engineeringDatum>
</gml:EngineeringCRS>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
