Element gml:AbstractSingleCRS
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:AbstractSingleCRS implements a coordinate reference system consisting of
one coordinate system and one datum (as opposed to a Compound CRS).

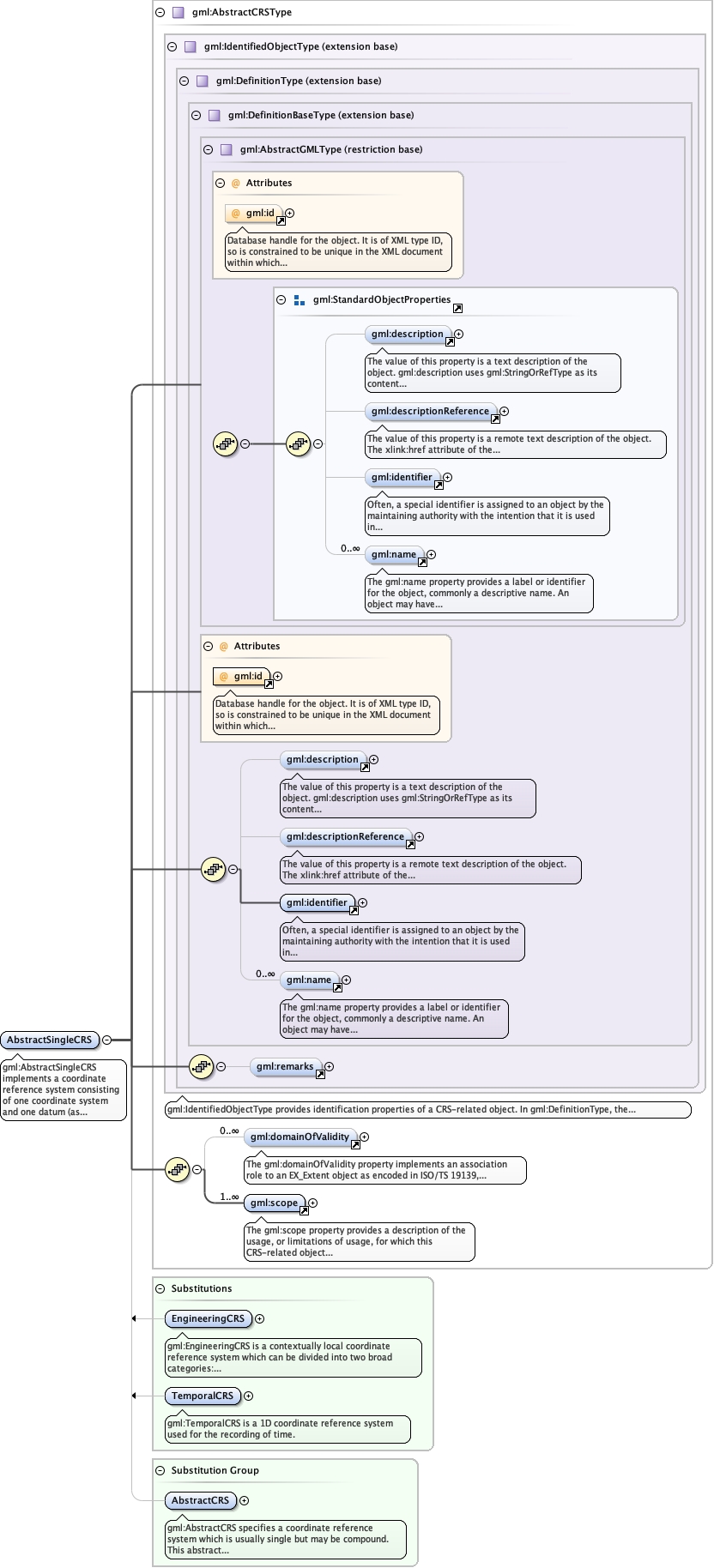

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Element_gml_domainOfValidity.tmp#domainOfValiditygml3_2Profile_diggs_xsd_Element_gml_scope.tmp#scopegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCRSType.tmp#AbstractCRSTypegml3_2Profile_diggs_xsd_Element_gml_EngineeringCRS.tmp#EngineeringCRSgml3_2Profile_diggs_xsd_Element_gml_TemporalCRS.tmp#TemporalCRSgml3_2Profile_diggs_xsd_Element_gml_AbstractCRS.tmp#AbstractCRS
Type gml:AbstractCRSType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:descriptionReference, gml:domainOfValidity, gml:identifier, gml:name, gml:remarks, gml:scope
Instance

<gml:AbstractSingleCRS gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:domainOfValidity>
  <gml:scope>{1,unbounded}</gml:scope>
</gml:AbstractSingleCRS>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
XML Schema documentation generated by ® XML Editor.
