Schema documentation for component gml:AbstractTimeObject

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Used by

Element gml:AbstractTimeObject

Namespace

http://www.opengis.net/gml/3.2

Annotations

gml:AbstractTimeObject acts as the head of a substitution group for all
temporal primitives and complexes.

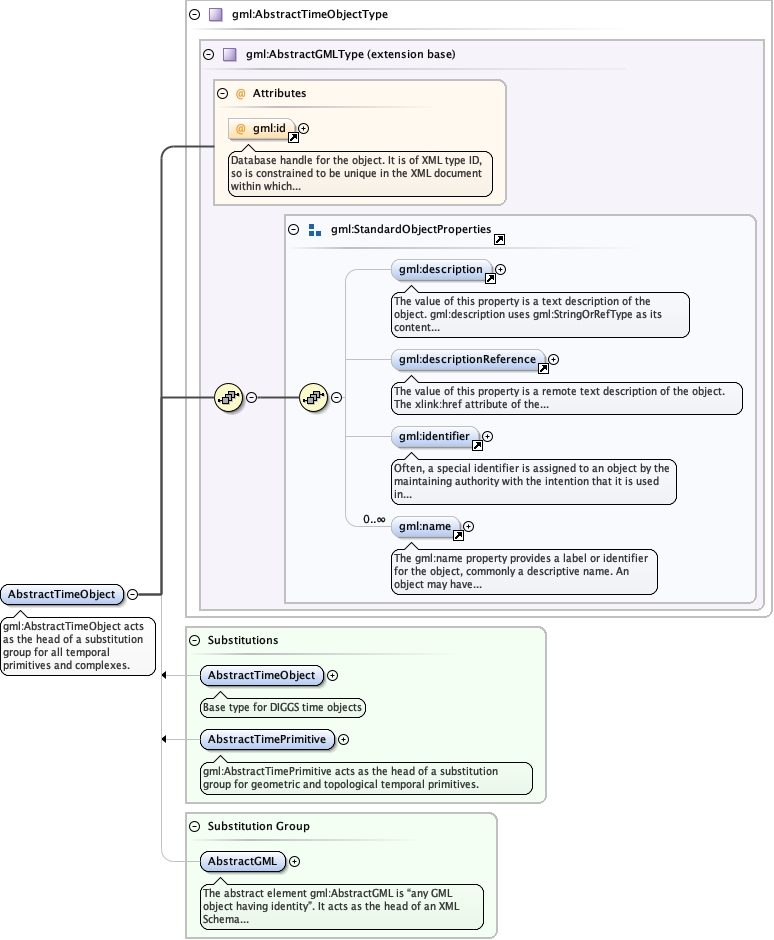

Diagram

Type

gml:AbstractTimeObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractTimeObjectType

Properties

content	complex
abstract	true

Substitution Group

Substitution Group Affiliation

gml:AbstractGML

Used by

Complex Type

gml:DomainSetType

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*

Children

gml:description, gml:descriptionReference, gml:identifier, gml:name

Instance

<gml:AbstractTimeObject gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:AbstractTimeObject>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Schema location

file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
