Complex Type diggs:VolumetricHeatTransferCoefficientMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volumetric heat transfer coefficient: Heat transfer coefficient per unit volume. Used in packed bed heat transfer and volumetric heat exchange calculations. Common units include W/(m³·K), kW/(m³·K), and Btu/(s·ft³·°F).

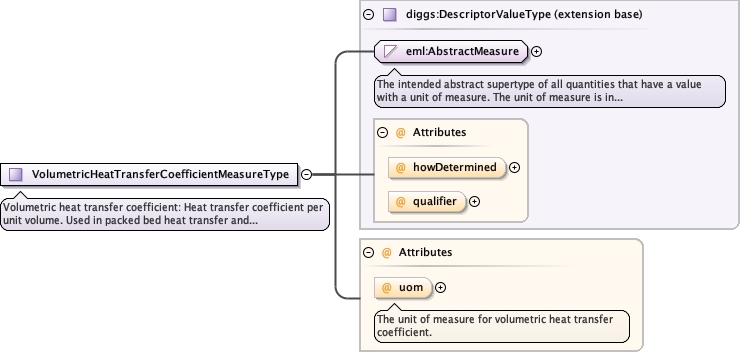

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumetricHeatTransferCoefficientMeasureType.tmp#VolumetricHeatTransferCoefficientMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumetricHeatTransferCoefficientUomEnumType optional
The unit of measure for volumetric heat transfer coefficient.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:VolumetricHeatTransferCoefficientMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volumetric heat transfer coefficient.
Type diggs:VolumetricHeatTransferCoefficientUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
