Complex Type diggs:VolumePerRotationMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volume displacement per revolution: Volume displaced per rotation. Used for positive displacement pumps and motors. Common units include m³/revolution, m³/rad, and ft³/rad.

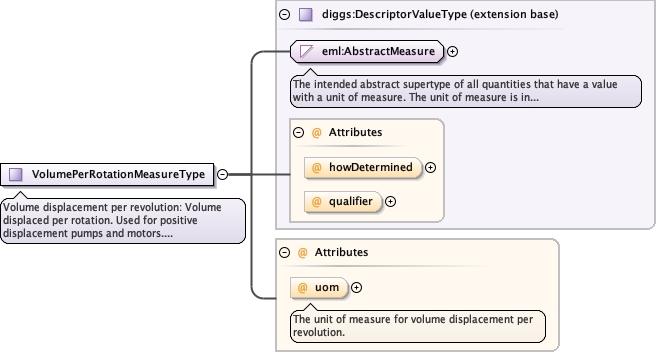

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerRotationMeasureType.tmp#VolumePerRotationMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerRotationUomEnumType optional
The unit of measure for volume displacement per revolution.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:VolumePerRotationMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volume displacement per revolution.
Type diggs:VolumePerRotationUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
