Complex Type diggs:VolumePerAreaMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volume per unit area or thickness: Volume distributed over an area, equivalent to thickness. Used for reservoir volume per acre, coating thickness, and infiltration volumes. Common units include m³/m² (equivalent to m), bbl/acre, and ft³/ft².

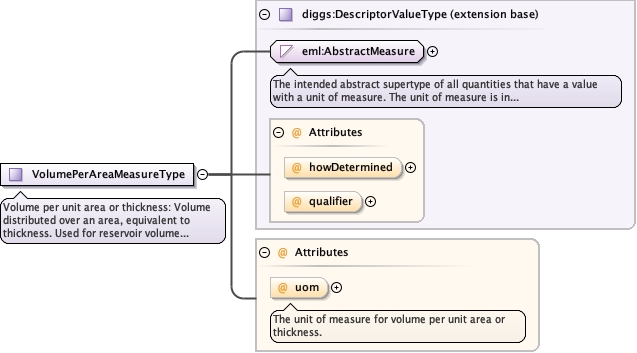

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerAreaMeasureType.tmp#VolumePerAreaMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerAreaUomEnumType optional
The unit of measure for volume per unit area or thickness.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:VolumePerAreaMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volume per unit area or thickness.
Type diggs:VolumePerAreaUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
