Complex Type diggs:ThermalInsulanceMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Thermal resistance or R-value: Resistance to heat flow. Used in building insulation specifications and thermal barrier analysis. Common units include (K·m²)/W, (°F·ft²·h)/Btu, and K·m²/kW.

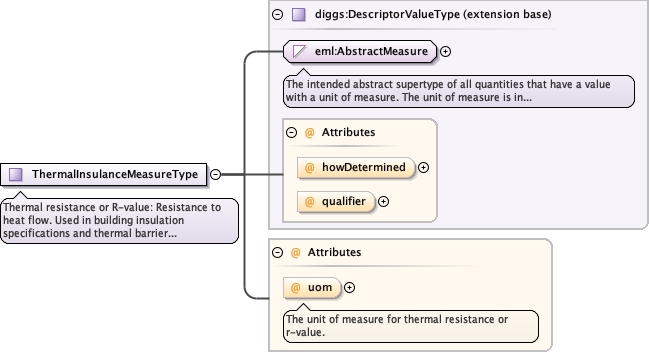

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermalInsulanceMeasureType.tmp#ThermalInsulanceMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermalInsulanceUomEnumType optional
The unit of measure for thermal resistance or r-value.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:ThermalInsulanceMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for thermal resistance or r-value.
Type diggs:ThermalInsulanceUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
