Complex Type diggs:ThermalDiffusivityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Thermal diffusivity: Ratio of thermal conductivity to volumetric heat capacity. Measures rate of heat propagation. Used in transient heat transfer analysis. Common units include m²/s, cm²/s, mm²/s, and ft²/h.

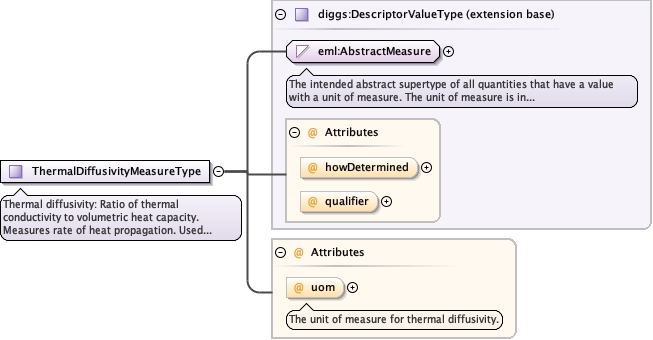

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermalDiffusivityMeasureType.tmp#ThermalDiffusivityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermalDiffusivityUomEnumType optional
The unit of measure for thermal diffusivity.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:ThermalDiffusivityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for thermal diffusivity.
Type diggs:ThermalDiffusivityUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
