Complex Type diggs:TemperatureIntervalPerPressureMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Temperature-pressure coefficient or Joule-Thomson coefficient: Rate of temperature change with pressure. Used in thermodynamics and reservoir engineering. Common units include K/Pa, °C/kPa, and °F/psi.

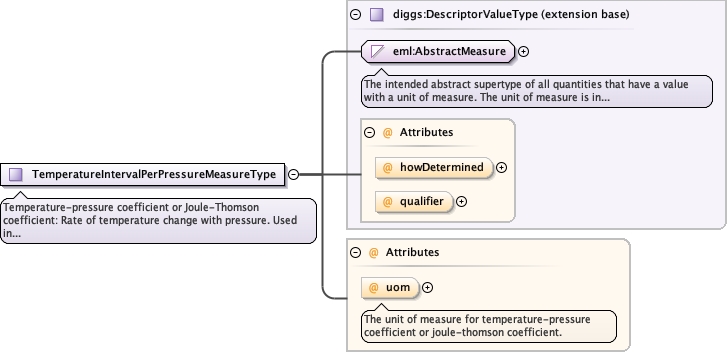

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TemperatureIntervalPerPressureMeasureType.tmp#TemperatureIntervalPerPressureMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TemperatureIntervalPerPressureUomEnumType optional
The unit of measure for temperature-pressure coefficient or joule-thomson coefficient.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:TemperatureIntervalPerPressureMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for temperature-pressure coefficient or joule-thomson coefficient.
Type diggs:TemperatureIntervalPerPressureUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
