Complex Type diggs:SpecificHeatCapacityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Specific heat capacity: Heat capacity per unit mass. Material property fundamental to thermal analysis. Common units include J/(kg·K), kJ/(kg·K), Btu/(lbm·°F), and cal/(g·K).

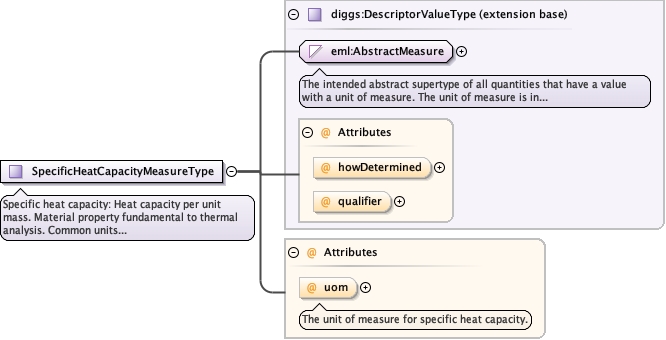

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificHeatCapacityMeasureType.tmp#SpecificHeatCapacityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:SpecificHeatCapacityUomEnumType optional
The unit of measure for specific heat capacity.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:SpecificHeatCapacityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for specific heat capacity.
Type diggs:SpecificHeatCapacityUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
