Complex Type diggs:PowerPerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Power density per volume or volumetric heat generation: Power per unit volume. Used for heat generation rates and power density in three dimensions. Common units include W/m³, kW/m³, Btu/(h·ft³), and hp/ft³.

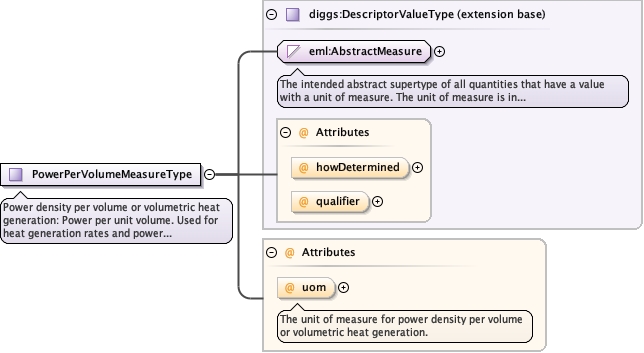

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PowerPerVolumeMeasureType.tmp#PowerPerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PowerPerVolumeUomEnumType optional
The unit of measure for power density per volume or volumetric heat generation.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:PowerPerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for power density per volume or volumetric heat generation.
Type diggs:PowerPerVolumeUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
