Complex Type diggs:PowerPerAreaMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Power density or heat flux: Power per unit area. Used for heat flux, radiation intensity, and power transmission. Common units include W/m², kW/m², Btu/(h·ft²), and W/cm².

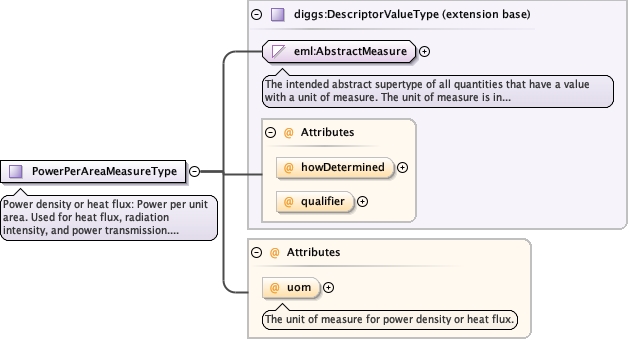

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PowerPerAreaMeasureType.tmp#PowerPerAreaMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PowerPerAreaUomEnumType optional
The unit of measure for power density or heat flux.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:PowerPerAreaMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for power density or heat flux.
Type diggs:PowerPerAreaUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
