Complex Type diggs:PotentialDifferencePerPowerDropMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Voltage per power ratio: Voltage per logarithmic power ratio. Used in signal processing and telecommunications. Common units include V/dB and V/B.

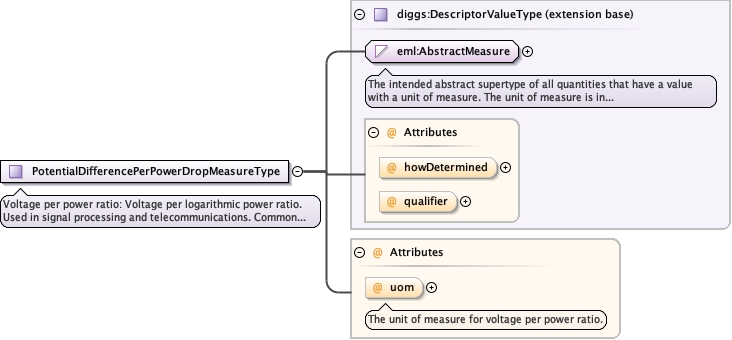

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PotentialDifferencePerPowerDropMeasureType.tmp#PotentialDifferencePerPowerDropMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PotentialDifferencePerPowerDropUomEnumType optional
The unit of measure for voltage per power ratio.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:PotentialDifferencePerPowerDropMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for voltage per power ratio.
Type diggs:PotentialDifferencePerPowerDropUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
