Complex Type diggs:MomentumMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Linear momentum: Product of mass and velocity. Used in impact analysis, collision studies, and dynamics. Common units include kg·m/s and lbm·ft/s.

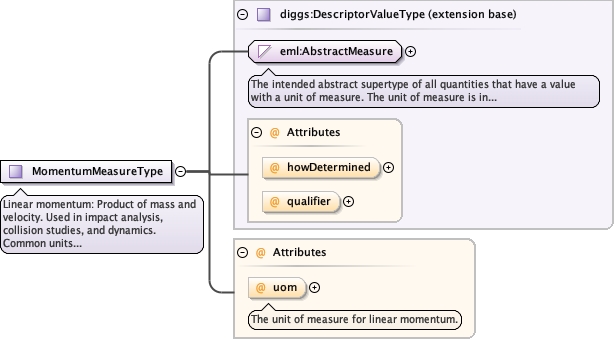

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentumMeasureType.tmp#MomentumMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentumUomEnumType optional
The unit of measure for linear momentum.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:MomentumMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for linear momentum.
Type diggs:MomentumUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
