Complex Type diggs:MassPerVolumePerPressureMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Density change per unit pressure or piezometric coefficient: Rate of density change with pressure. Used in compressible fluid mechanics and formation evaluation. Common units include kg/(m³·kPa) and lb/(ft³·psi).

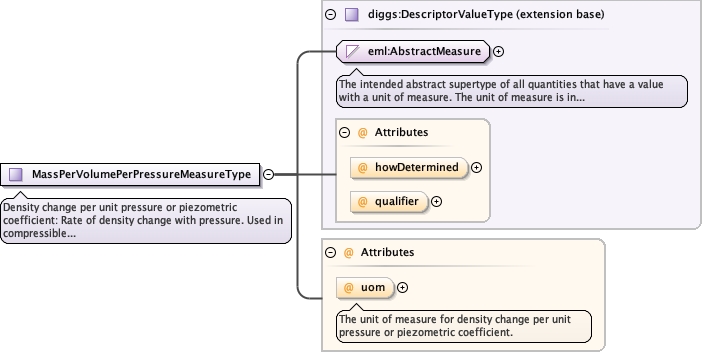

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerVolumePerPressureMeasureType.tmp#MassPerVolumePerPressureMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerVolumePerPressureUomEnumType optional
The unit of measure for density change per unit pressure or piezometric coefficient.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:MassPerVolumePerPressureMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for density change per unit pressure or piezometric coefficient.
Type diggs:MassPerVolumePerPressureUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
