Complex Type diggs:MassPerTimePerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Dynamic viscosity or mass flux per length: Viscosity or mass flow rate per unit length per unit time. Equivalent to dynamic viscosity. Common units include Pa·s, kg/(m·s), and lbm/(ft·s).

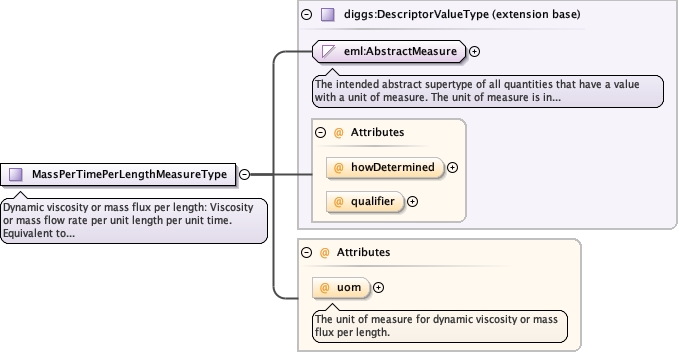

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerTimePerLengthMeasureType.tmp#MassPerTimePerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerTimePerLengthUomEnumType optional
The unit of measure for dynamic viscosity or mass flux per length.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:MassPerTimePerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for dynamic viscosity or mass flux per length.
Type diggs:MassPerTimePerLengthUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
