Complex Type diggs:MassLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Mass times length or linear momentum per velocity: Product of mass and length. Used in certain mechanical calculations. Common units include kg·m and lbm·ft.

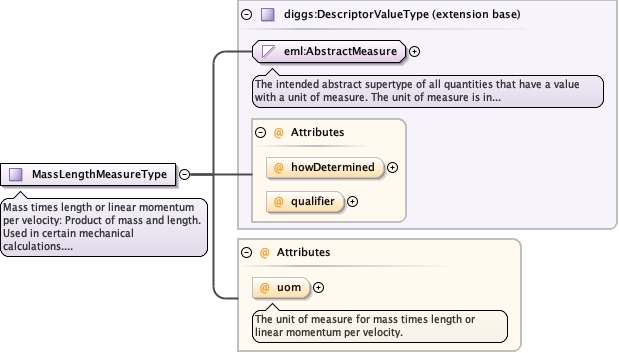

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassLengthMeasureType.tmp#MassLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassLengthUomEnumType optional
The unit of measure for mass times length or linear momentum per velocity.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:MassLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for mass times length or linear momentum per velocity.
Type diggs:MassLengthUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
