Complex Type diggs:LogarithmicPowerRatioPerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Attenuation per unit length or attenuation coefficient: Logarithmic decrease in power per unit distance. Used in acoustics, seismology, and signal attenuation measurements. Common units include dB/m, dB/ft, dB/km, and bel/m.

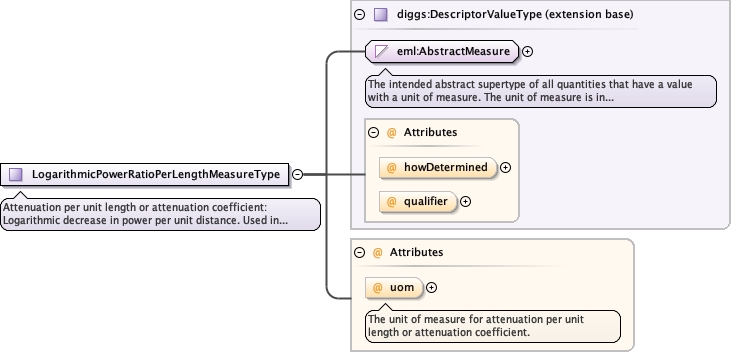

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LogarithmicPowerRatioPerLengthMeasureType.tmp#LogarithmicPowerRatioPerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LogarithmicPowerRatioPerLengthUomEnumType optional
The unit of measure for attenuation per unit length or attenuation coefficient.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:LogarithmicPowerRatioPerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for attenuation per unit length or attenuation coefficient.
Type diggs:LogarithmicPowerRatioPerLengthUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
