Complex Type diggs:LinearThermalExpansionMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Coefficient of linear thermal expansion: Fractional length change per unit temperature change. Material property used in thermal stress analysis. Common units include 1/K, 1/°C, in/(in·°F), and m/(m·K).

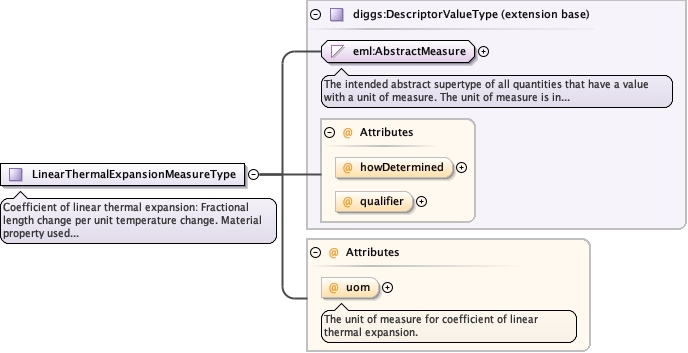

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LinearThermalExpansionMeasureType.tmp#LinearThermalExpansionMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LinearThermalExpansionUomEnumType optional
The unit of measure for coefficient of linear thermal expansion.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:LinearThermalExpansionMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for coefficient of linear thermal expansion.
Type diggs:LinearThermalExpansionUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
