Complex Type diggs:LengthPerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Reciprocal area or specific perimeter: Length per unit volume. Used in hydraulic radius calculations and fuel economy (inverse, like km/L or mi/gal). Common units include 1/m, ft/ft³, and km/L.

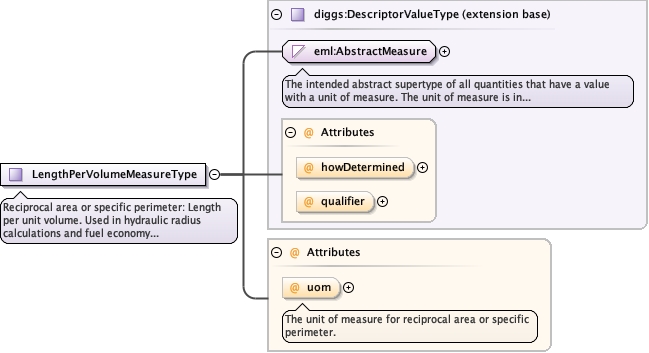

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthPerVolumeMeasureType.tmp#LengthPerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthPerVolumeUomEnumType optional
The unit of measure for reciprocal area or specific perimeter.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:LengthPerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for reciprocal area or specific perimeter.
Type diggs:LengthPerVolumeUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
