Complex Type diggs:IsothermalCompressibilityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Isothermal compressibility or volume per energy: Volume change per unit pressure change at constant temperature. Used in fluid mechanics and rock mechanics. Common units include m³/J, 1/Pa, and dm³/(kW·h).

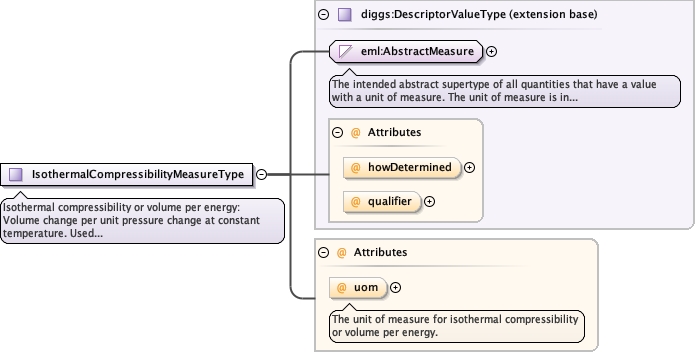

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_IsothermalCompressibilityMeasureType.tmp#IsothermalCompressibilityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:IsothermalCompressibilityUomEnumType optional
The unit of measure for isothermal compressibility or volume per energy.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:IsothermalCompressibilityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for isothermal compressibility or volume per energy.
Type diggs:IsothermalCompressibilityUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
