Complex Type diggs:HeatTransferCoefficientMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Heat transfer coefficient or thermal conductance per area: Rate of heat transfer per unit area per unit temperature difference. Used in heat exchanger design, building thermal analysis, and convective heat transfer. Common units include W/(m²·K), Btu/(h·ft²·°F), and kW/(m²·K).

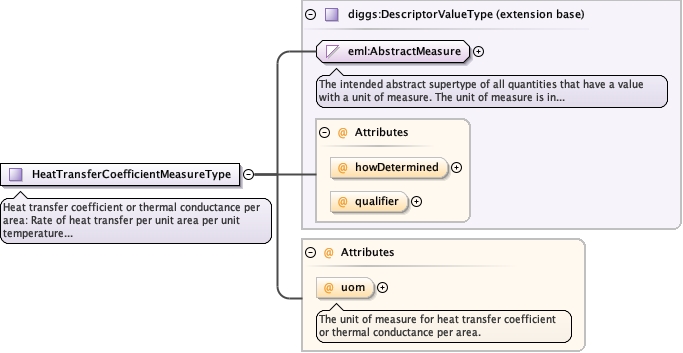

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_HeatTransferCoefficientMeasureType.tmp#HeatTransferCoefficientMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:HeatTransferCoefficientUomEnumType optional
The unit of measure for heat transfer coefficient or thermal conductance per area.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:HeatTransferCoefficientMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for heat transfer coefficient or thermal conductance per area.
Type diggs:HeatTransferCoefficientUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
