Complex Type diggs:EnergyPerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Energy density or volumetric energy: Energy per unit volume. Used for fuel energy content, strain energy density, and compressed gas energy storage. Common units include J/m³, kJ/m³, MJ/m³, Btu/ft³, and kW·h/m³.

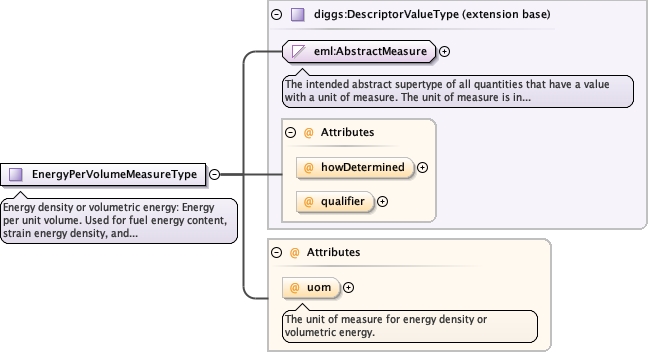

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_EnergyPerVolumeMeasureType.tmp#EnergyPerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:EnergyPerVolumeUomEnumType optional
The unit of measure for energy density or volumetric energy.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:EnergyPerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for energy density or volumetric energy.
Type diggs:EnergyPerVolumeUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
