Complex Type diggs:EnergyLengthPerTimeAreaTemperatureMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Thermal conductivity: Rate of heat transfer through a material per unit area per unit temperature gradient. Fundamental property in heat transfer and thermal analysis. Common units include W/(m·K) and Btu/(h·ft·°F).

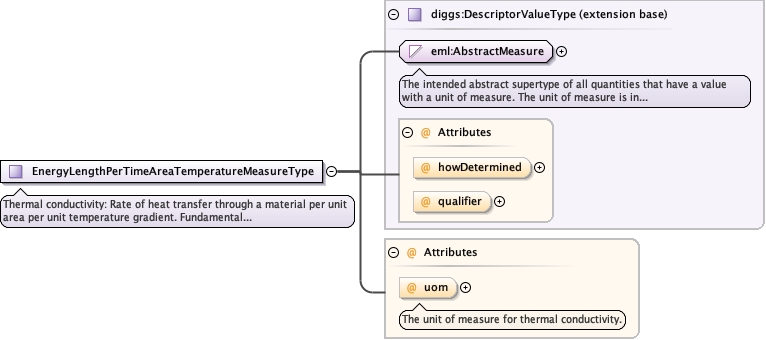

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_EnergyLengthPerTimeAreaTemperatureMeasureType.tmp#EnergyLengthPerTimeAreaTemperatureMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:EnergyLengthPerTimeAreaTemperatureUomEnumType optional
The unit of measure for thermal conductivity.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:EnergyLengthPerTimeAreaTemperatureMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for thermal conductivity.
Type diggs:EnergyLengthPerTimeAreaTemperatureUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
