Complex Type diggs:BearingMeasureBaseType
Namespace http://diggsml.org/schemas/3
Annotations

A measure type for bearing angles (horizontal angles measured from a reference direction). The value is constrained to the range 0-360 degrees or equivalent in other angular units. This base type provides the angular constraint without the reference direction attribute.

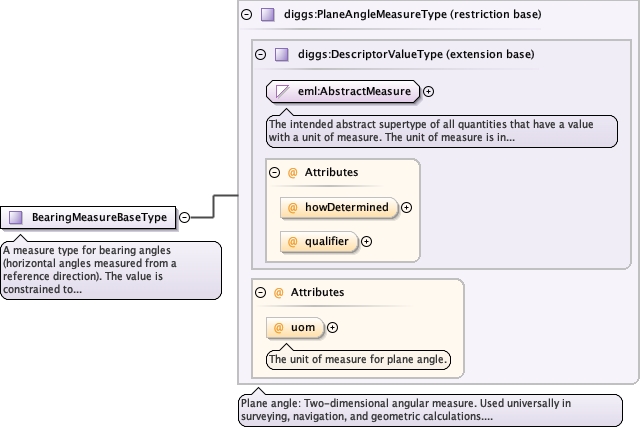

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type restriction of diggs:PlaneAngleMeasureType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
