Complex Type diggs:AttenuationPerFrequencyIntervalMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Attenuation rate: Signal attenuation per frequency interval. Used in acoustics, seismology, and geophysical signal processing. Common units include dB/octave and bel/octave.

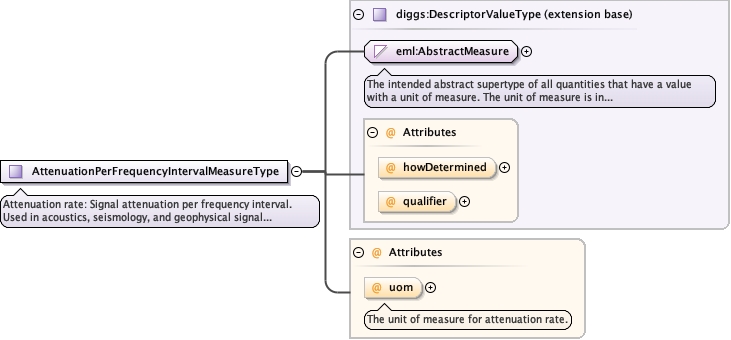

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AttenuationPerFrequencyIntervalMeasureType.tmp#AttenuationPerFrequencyIntervalMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AttenuationPerFrequencyIntervalUomEnumType optional
The unit of measure for attenuation rate.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:AttenuationPerFrequencyIntervalMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for attenuation rate.
Type diggs:AttenuationPerFrequencyIntervalUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
