Complex Type diggs:AmountOfSubstancePerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Molar concentration or molarity: Amount of substance per unit volume. Fundamental unit in chemistry for expressing solution concentrations. Common units include mol/m³, kmol/m³, and lbmol/ft³.

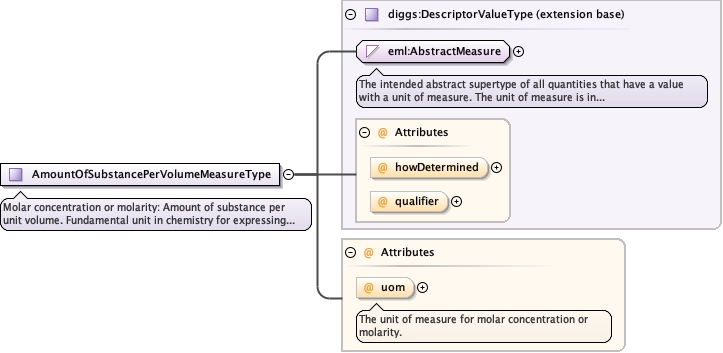

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AmountOfSubstancePerVolumeMeasureType.tmp#AmountOfSubstancePerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AmountOfSubstancePerVolumeUomEnumType optional
The unit of measure for molar concentration or molarity.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:AmountOfSubstancePerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for molar concentration or molarity.
Type diggs:AmountOfSubstancePerVolumeUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
