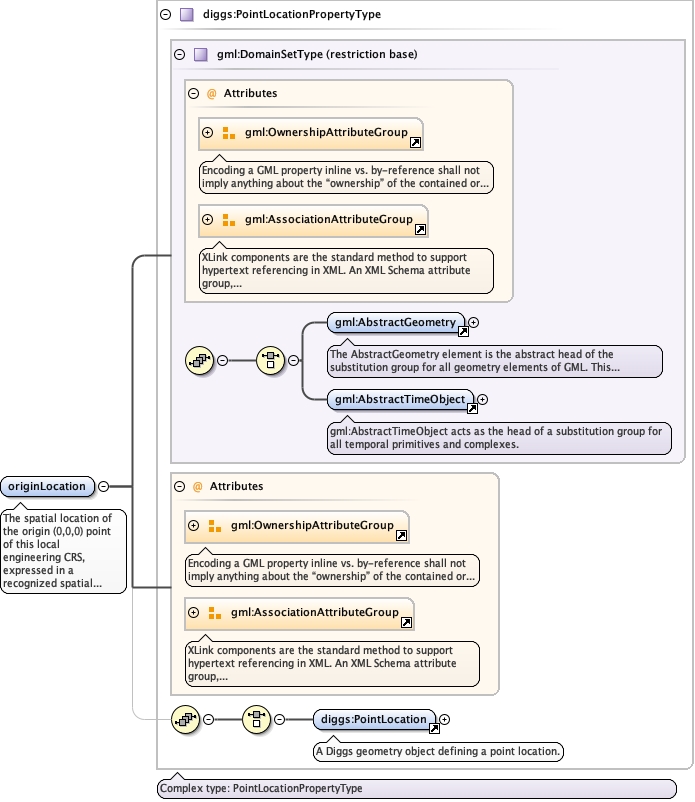

Element diggs:LocalCartesianCRSType / diggs:originLocation
Namespace http://diggsml.org/schemas/3
Annotations

The spatial location of the origin (0,0,0) point of this local
engineering CRS, expressed in a recognized spatial coordinate
reference system. This point serves as the anchor for transforming
local engineering coordinates to the target spatial coordinates.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:PointLocation
Instance

<diggs:originLocation xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:originLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd

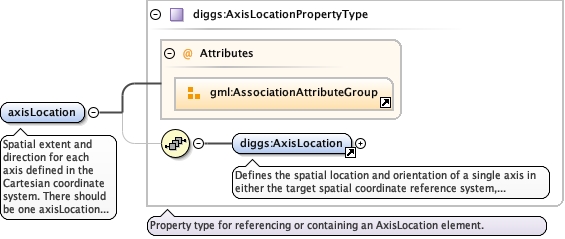

Element diggs:LocalCartesianCRSType / diggs:axisLocation
Namespace http://diggsml.org/schemas/3
Annotations

Spatial extent and direction for each axis defined in the
Cartesian coordinate system. There should be one axisLocation
element for each axis in the coordinate system. The order
should match the axis order in the Cartesian CS definition.
Diagram
DiagramLocalReferencing_xsd_Element_diggs_AxisLocation.tmp#AxisLocationLocalReferencing_xsd_Complex_Type_diggs_AxisLocationPropertyType.tmp#AxisLocationPropertyType
Type diggs:AxisLocationPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:AxisLocation
Instance

<diggs:axisLocation xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AxisLocation gml:id="">{1,1}</diggs:AxisLocation>
</diggs:axisLocation>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd
Element diggs:LocalCartesianCRSType / diggs:transformationMethod
Namespace http://diggsml.org/schemas/3
Annotations

Identifier for the mathematical method to be used for coordinate
transformation between this local engineering CRS and spatial
coordinates. Examples include: "affine", "helmert",
"direct-linear-referencing", "polynomial", etc.
Diagram
Diagram
Type gml:CodeType
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd

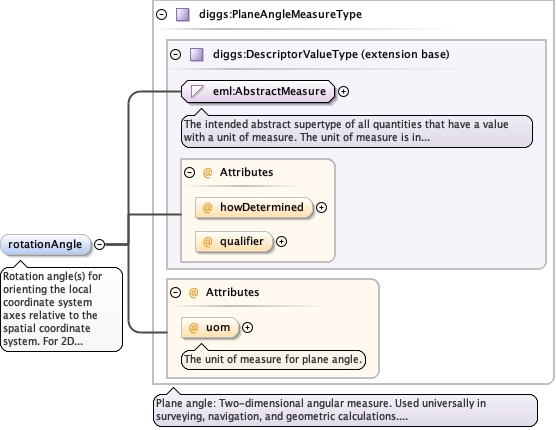

Element diggs:LocalCartesianCRSType / diggs:rotationAngle
Namespace http://diggsml.org/schemas/3
Annotations

Rotation angle(s) for orienting the local coordinate system
axes relative to the spatial coordinate system. For 2D systems,
one rotation angle is specified (rotation about the vertical
axis). For 3D systems, up to three rotation angles may be
specified (e.g., Euler angles or rotations about X, Y, and Z axes).
The interpretation of multiple angles depends on the specified
transformationMethod.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 3
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd

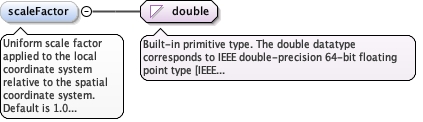

Element diggs:LocalCartesianCRSType / diggs:scaleFactor
Namespace http://diggsml.org/schemas/3
Annotations

Uniform scale factor applied to the local coordinate system
relative to the spatial coordinate system. Default is 1.0
(no scaling). Values greater than 1.0 indicate that local
engineering coordinates represent larger distances than the
corresponding spatial coordinates. Values less than 1.0 indicate
that local engineering coordinates represent smaller distances.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
default 1.0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd

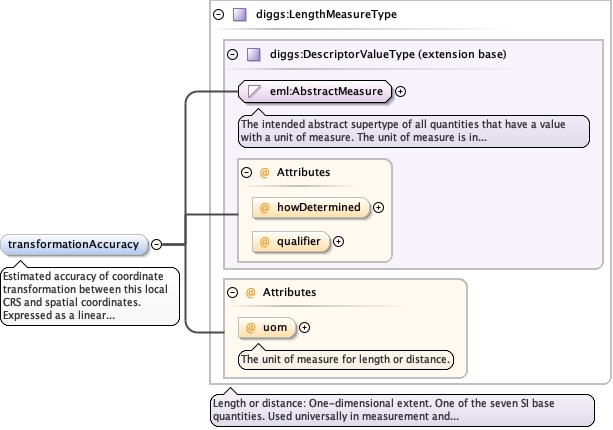

Element diggs:LocalCartesianCRSType / diggs:transformationAccuracy
Namespace http://diggsml.org/schemas/3
Annotations

Estimated accuracy of coordinate transformation between this
local CRS and spatial coordinates. Expressed as a linear
distance uncertainty (e.g., in meters or feet). This value
represents the expected positional error when transforming
coordinates between the two systems.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd

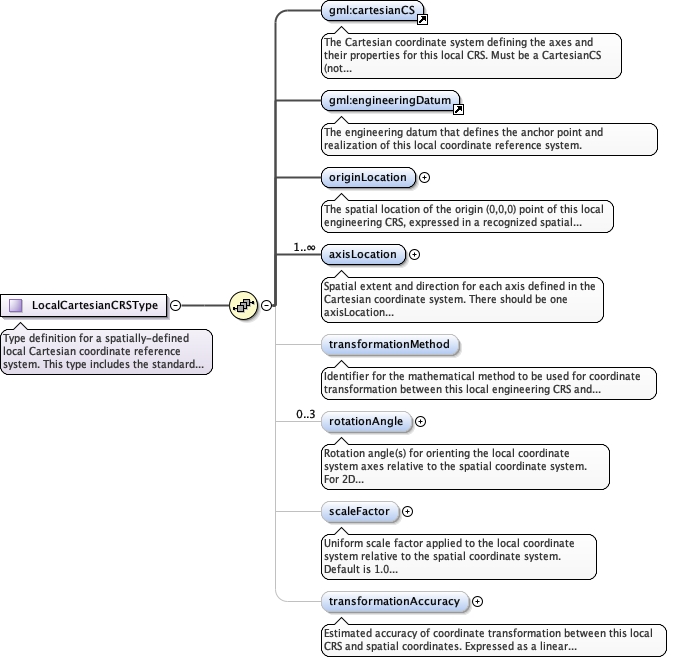

Complex Type diggs:LocalCartesianCRSType
Namespace http://diggsml.org/schemas/3
Annotations

Type definition for a spatially-defined local Cartesian coordinate reference
system. This type includes the standard CRS components (coordinate system,
datum) plus additional spatial positioning elements (origin location, axis
locations, transformation parameters) that enable coordinate transformations
between the local CRS and spatial coordinate reference systems.
Diagram
DiagramLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_originLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_axisLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationMethodLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_rotationAngleLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_scaleFactorLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationAccuracy
Type extension of gml:AbstractCRSType
Type hierarchy
Used by
Model
Children cartesianCS, diggs:axisLocation, diggs:originLocation, diggs:rotationAngle, diggs:scaleFactor, diggs:transformationAccuracy, diggs:transformationMethod, engineeringDatum
Schema location file:/Users/dponti/GitHub/diggs-schema/core/LocalReferencing.xsd
