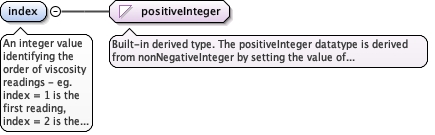

Element diggs:ViscosityReadingType / diggs:index
Namespace http://diggsml.org/schemas/3
Annotations

An integer value identifying the order of viscosity
readings - eg. index = 1 is the first reading, index = 2 is the
second, etc.
Diagram
Diagram
Type positiveInteger
Properties
content simple
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

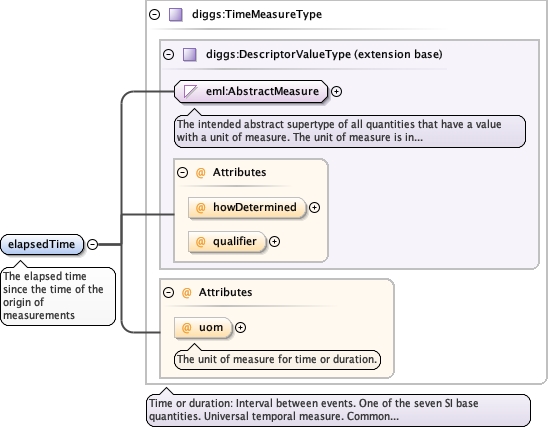

Element diggs:ViscosityReadingType / diggs:elapsedTime
Namespace http://diggsml.org/schemas/3
Annotations

The elapsed time since the time of the origin of
measurements
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

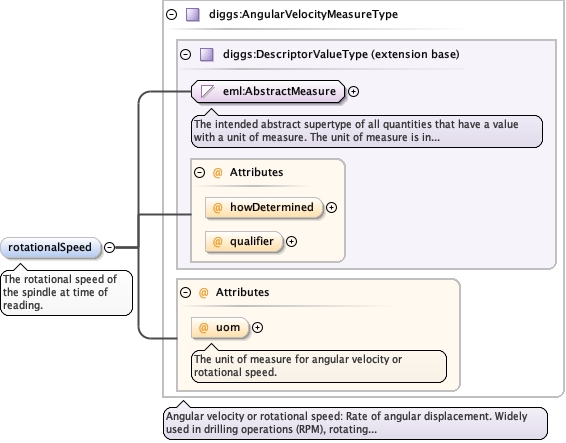

Element diggs:ViscosityReadingType / diggs:rotationalSpeed
Namespace http://diggsml.org/schemas/3
Annotations

The rotational speed of the spindle at time of
reading.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType
Type diggs:AngularVelocityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AngularVelocityUomEnumType optional
The unit of measure for angular velocity or rotational speed.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

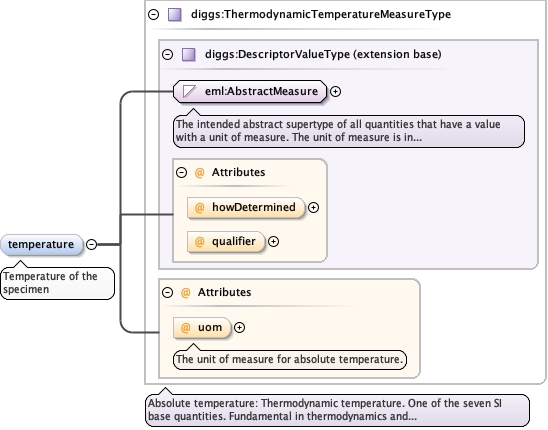

Element diggs:ViscosityReadingType / diggs:temperature
Namespace http://diggsml.org/schemas/3
Annotations

Temperature of the specimen
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType
Type diggs:ThermodynamicTemperatureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:ViscosityReadingType / diggs:torque
Namespace http://diggsml.org/schemas/3
Annotations

Torque at time of reading
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

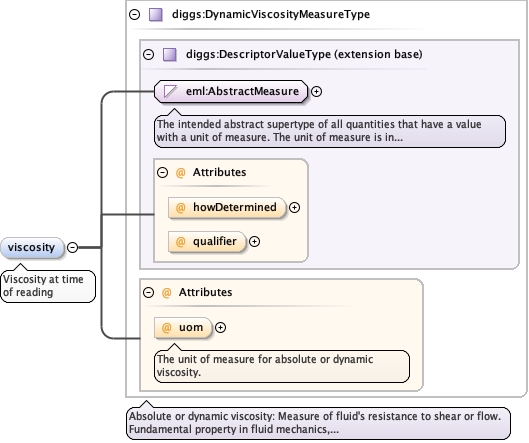

Element diggs:ViscosityReadingType / diggs:viscosity
Namespace http://diggsml.org/schemas/3
Annotations

Viscosity at time of reading
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType
Type diggs:DynamicViscosityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DynamicViscosityUomEnumType optional
The unit of measure for absolute or dynamic viscosity.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

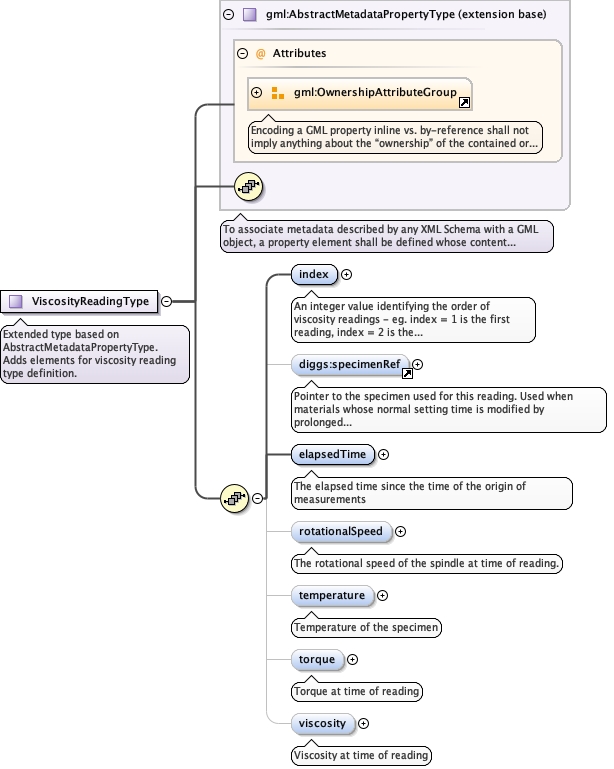

Complex Type diggs:ViscosityReadingType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractMetadataPropertyType. Adds elements for viscosity reading type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_indexCommon_xsd_Element_diggs_specimenRef.tmp#specimenRefGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_elapsedTimeGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_rotationalSpeedGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_temperatureGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_torqueGrouting_xsd_Complex_Type_diggs_ViscosityReadingType.tmp#ViscosityReadingType_viscosity
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:elapsedTime, diggs:index, diggs:rotationalSpeed, diggs:specimenRef, diggs:temperature, diggs:torque, diggs:viscosity
Attributes
QName Type Default Use
owns boolean false optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
