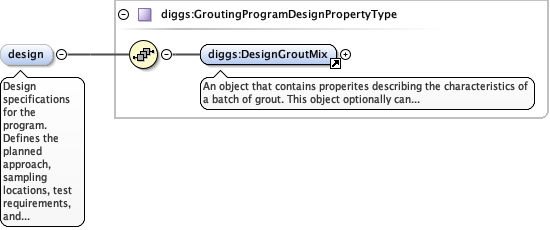

Element diggs:GroutingProgramType / diggs:design
Namespace http://diggsml.org/schemas/3
Annotations

Design specifications for the program. Defines the planned approach, sampling locations, test requirements, and acceptance criteria that guide program execution. Multiple designs can be specified for different aspects or phases of the program.
Diagram
DiagramGrouting_xsd_Element_diggs_DesignGroutMix.tmp#DesignGroutMixGrouting_xsd_Complex_Type_diggs_GroutingProgramDesignPropertyType.tmp#GroutingProgramDesignPropertyType
Type diggs:GroutingProgramDesignPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:DesignGroutMix
Instance

<diggs:design xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:DesignGroutMix gml:id="">{1,1}</diggs:DesignGroutMix>
</diggs:design>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

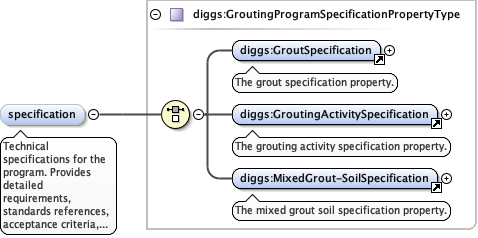

Element diggs:GroutingProgramType / diggs:specification
Namespace http://diggsml.org/schemas/3
Annotations

Technical specifications for the program. Provides detailed requirements, standards references, acceptance criteria, and quality control measures that govern program execution. Specifications are more detailed than designs and typically reference specific standards (ASTM, AASHTO, etc.) and numerical acceptance criteria.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutSpecification.tmp#GroutSpecificationGrouting_xsd_Element_diggs_GroutingActivitySpecification.tmp#GroutingActivitySpecificationGrouting_xsd_Element_diggs_MixedGrout-SoilSpecification.tmp#MixedGrout-SoilSpecificationGrouting_xsd_Complex_Type_diggs_GroutingProgramSpecificationPropertyType.tmp#GroutingProgramSpecificationPropertyType
Type diggs:GroutingProgramSpecificationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:GroutSpecification, diggs:GroutingActivitySpecification, diggs:MixedGrout-SoilSpecification
Instance

<diggs:specification xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutSpecification gml:id="">{1,1}</diggs:GroutSpecification>
  <diggs:GroutingActivitySpecification gml:id="">{1,1}</diggs:GroutingActivitySpecification>
  <diggs:MixedGrout-SoilSpecification gml:id="">{1,1}</diggs:MixedGrout-SoilSpecification>
</diggs:specification>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

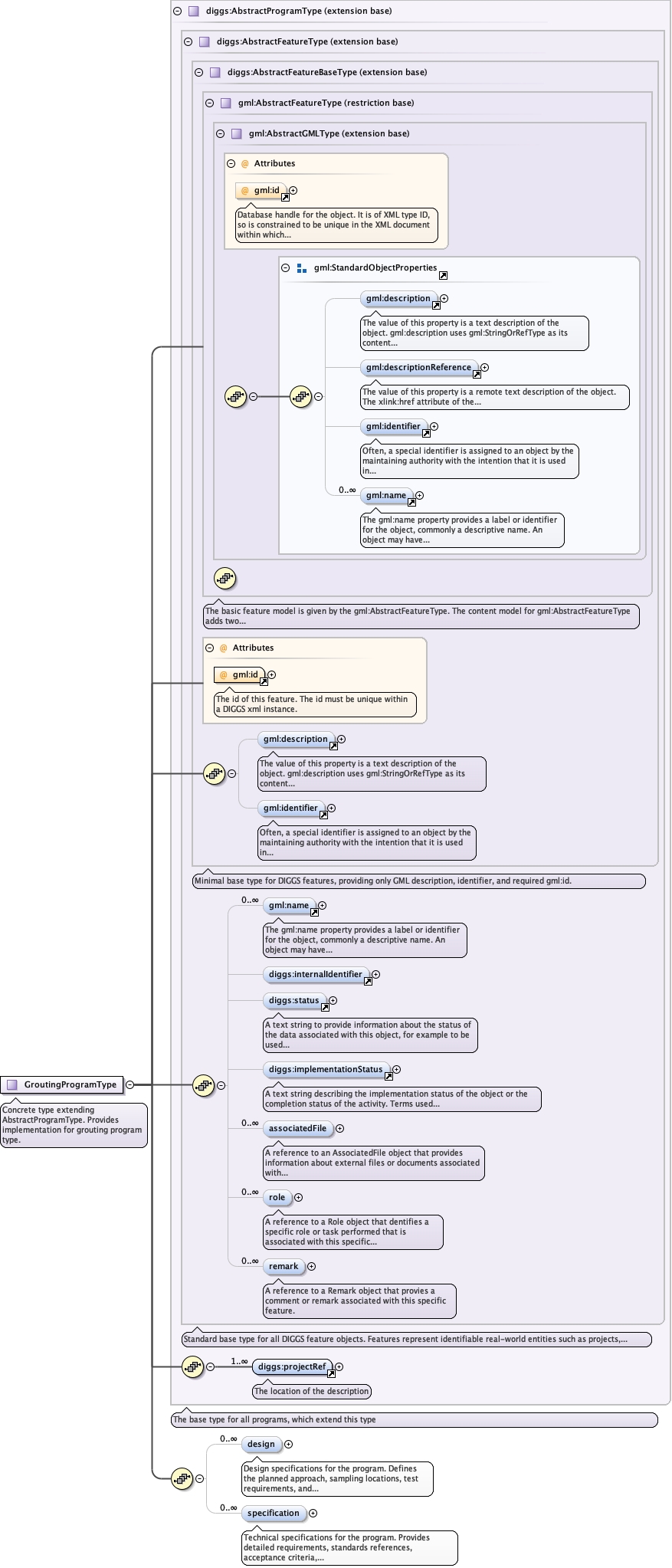

Complex Type diggs:GroutingProgramType
Namespace http://diggsml.org/schemas/3
Annotations

Concrete type extending AbstractProgramType. Provides implementation for grouting program type.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramType.tmp#AbstractProgramTypeGrouting_xsd_Complex_Type_diggs_GroutingProgramType.tmp#GroutingProgramType_designGrouting_xsd_Complex_Type_diggs_GroutingProgramType.tmp#GroutingProgramType_specification
Type extension of diggs:AbstractProgramType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:design, diggs:implementationStatus, diggs:internalIdentifier, diggs:projectRef, diggs:remark, diggs:role, diggs:specification, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
