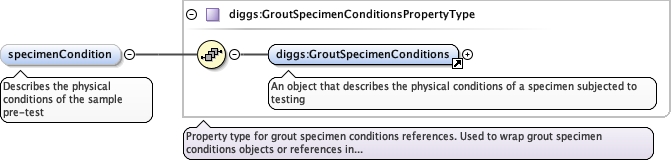

Element diggs:GroutSpecimenType / diggs:specimenCondition
Namespace http://diggsml.org/schemas/3
Annotations

Describes the physical conditions of the sample
pre-test
Diagram
DiagramGrouting_xsd_Element_diggs_GroutSpecimenConditions.tmp#GroutSpecimenConditionsGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsPropertyType.tmp#GroutSpecimenConditionsPropertyType
Type diggs:GroutSpecimenConditionsPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutSpecimenConditions
Instance

<diggs:specimenCondition xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutSpecimenConditions gml:id="">{1,1}</diggs:GroutSpecimenConditions>
</diggs:specimenCondition>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

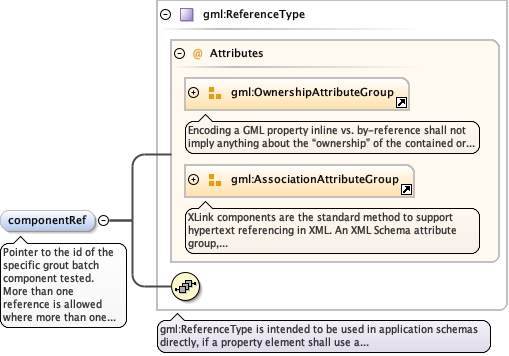

Element diggs:GroutSpecimenType / diggs:componentRef
Namespace http://diggsml.org/schemas/3
Annotations

Pointer to the id of the specific grout batch component
tested. More than one reference is allowed where more than one
component of a specific type is included together in the specimen
tested. In this case each componentRef will point to the components
used.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenType / diggs:componentType
Namespace http://diggsml.org/schemas/3
Annotations

If test is performed on one type of grout component (as
opposed to the grout mix itself, this property identifies the
specific grout component type tested. From an emumerated list: 1)
Admixture 2) Binder 3) Cement 4) Chemical 5) Filler See GroutBatch
object for definition of these components
Diagram
DiagramGrouting_xsd_Simple_Type_diggs_goutComponentTypeEnumType.tmp#goutComponentTypeEnumType
Type diggs:goutComponentTypeEnumType
Properties
content simple
minOccurs 0
Facets
enumeration Admixture
Admixture - admixture value.
enumeration Binder
Binder - binder value.
enumeration Cement
Cement - cement value.
enumeration Chemical
Chemical - chemical value.
enumeration Filler
Filler - filler value.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

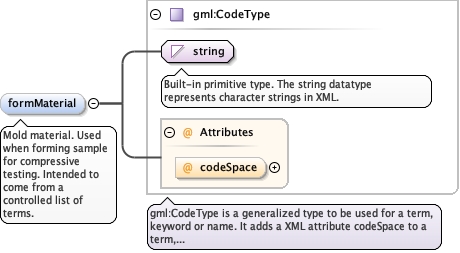

Element diggs:GroutSpecimenType / diggs:formMaterial
Namespace http://diggsml.org/schemas/3
Annotations

Mold material. Used when forming sample for compressive
testing. Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

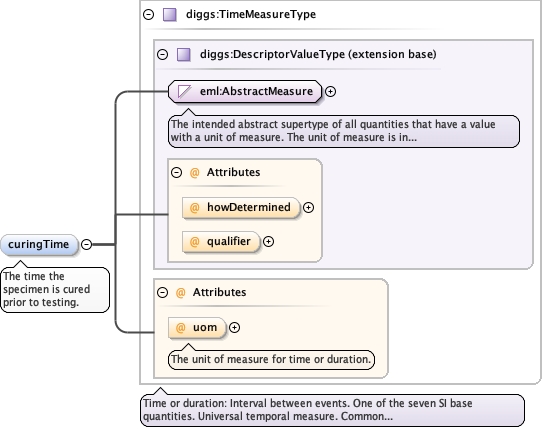

Element diggs:GroutSpecimenType / diggs:curingTime
Namespace http://diggsml.org/schemas/3
Annotations

The time the specimen is cured prior to
testing.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

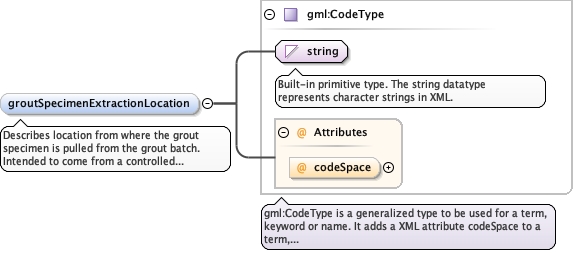

Element diggs:GroutSpecimenType / diggs:groutSpecimenExtractionLocation
Namespace http://diggsml.org/schemas/3
Annotations

Describes location from where the grout specimen is
pulled from the grout batch. Intended to come from a controlled list
of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

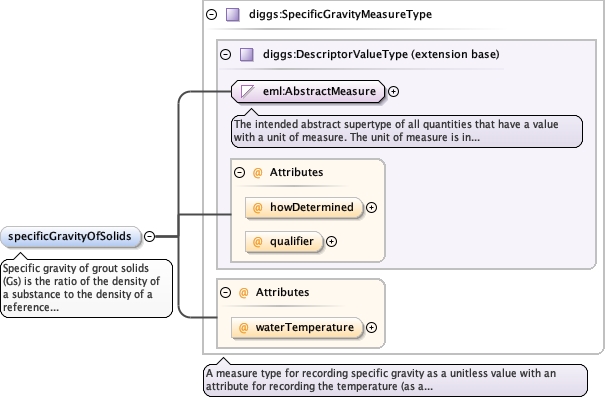

Element diggs:GroutSpecimenType / diggs:specificGravityOfSolids
Namespace http://diggsml.org/schemas/3
Annotations

Specific gravity of grout solids (Gs) is the ratio of the
density of a substance to the density of a reference substance,
usually water at 4 deg C; equivalently, it is the ratio of the mass
of a substance to the mass of a reference substance for the same
given volume.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType_waterTemperatureMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType
Type diggs:SpecificGravityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

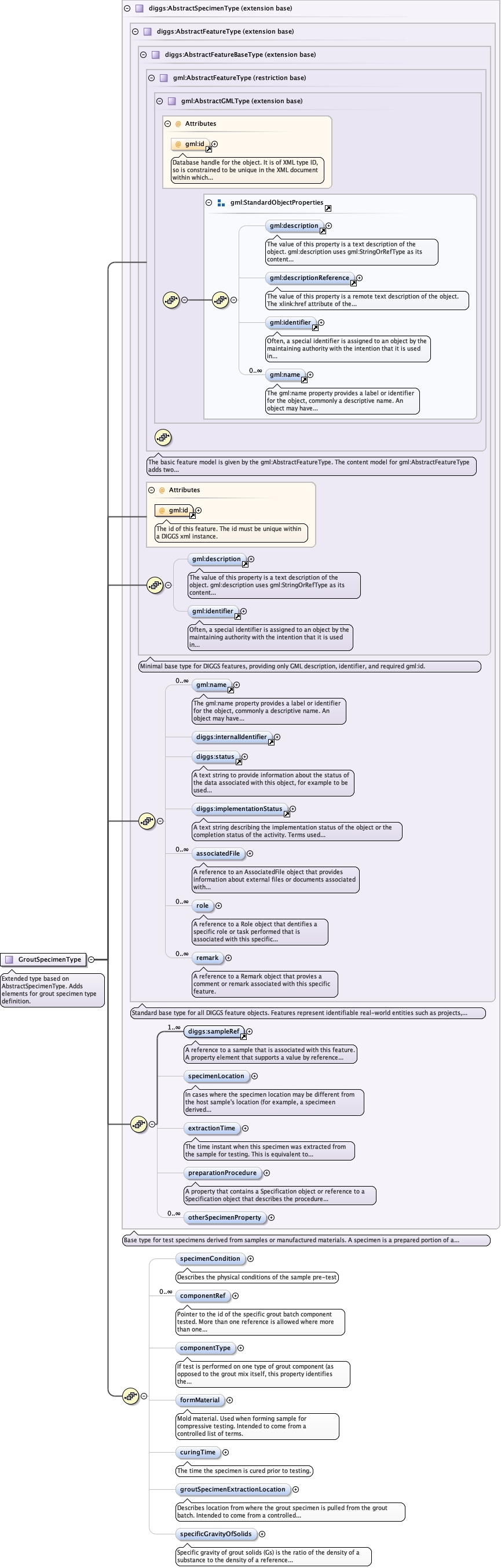

Complex Type diggs:GroutSpecimenType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractSpecimenType. Adds elements for grout specimen type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_specimenLocationAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_extractionTimeAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_preparationProcedureAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_otherSpecimenPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenTypeGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_specimenConditionGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_componentRefGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_componentTypeGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_formMaterialGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_curingTimeGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_groutSpecimenExtractionLocationGrouting_xsd_Complex_Type_diggs_GroutSpecimenType.tmp#GroutSpecimenType_specificGravityOfSolids
Type extension of diggs:AbstractSpecimenType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:componentRef, diggs:componentType, diggs:curingTime, diggs:extractionTime, diggs:formMaterial, diggs:groutSpecimenExtractionLocation, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecimenProperty, diggs:preparationProcedure, diggs:remark, diggs:role, diggs:sampleRef, diggs:specificGravityOfSolids, diggs:specimenCondition, diggs:specimenLocation, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
