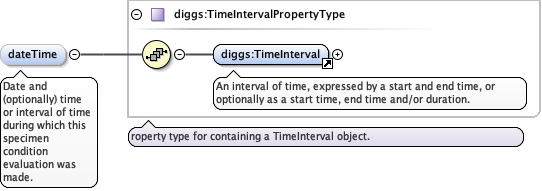

Element diggs:GroutSpecimenConditionsType / diggs:dateTime
Namespace http://diggsml.org/schemas/3
Annotations

Date and (optionally) time or interval of time during
which this specimen condition evaluation was made.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
nillable false
Model
Children diggs:TimeInterval
Instance

<diggs:dateTime xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:dateTime>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

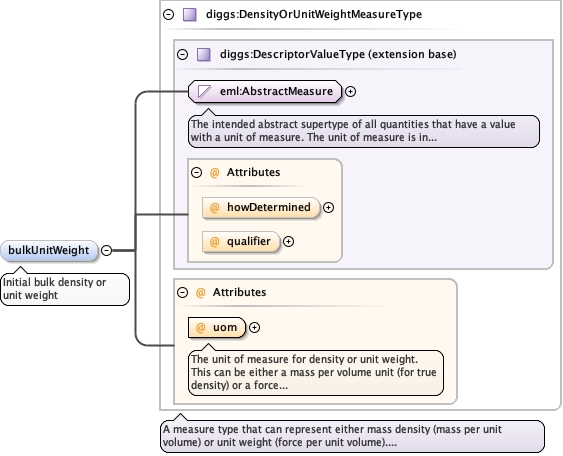

Element diggs:GroutSpecimenConditionsType / diggs:bulkUnitWeight
Namespace http://diggsml.org/schemas/3
Annotations

Initial bulk density or unit weight
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

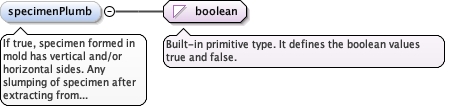

Element diggs:GroutSpecimenConditionsType / diggs:specimenPlumb
Namespace http://diggsml.org/schemas/3
Annotations

If true, specimen formed in mold has vertical and/or
horizontal sides. Any slumping of specimen after extracting from
mold should have this property set as false.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenConditionsType / diggs:dimensionMeasurementTechnique
Namespace http://diggsml.org/schemas/3
Annotations

Technique used to measure specimen lengths and diameters.
Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled
string after colon)
Diagram
DiagramCore_xsd_Simple_Type_diggs_DimensionMeasurementTechniqueType.tmp#DimensionMeasurementTechniqueType
Type diggs:DimensionMeasurementTechniqueType
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

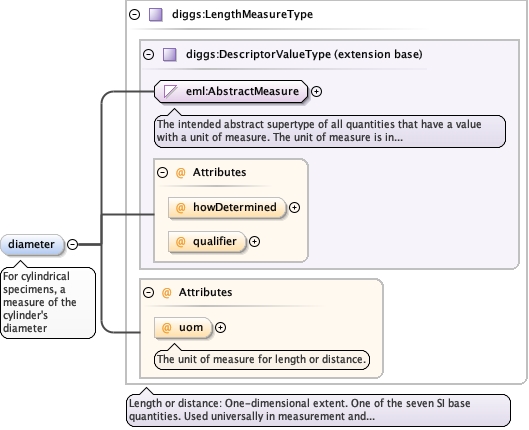

Element diggs:GroutSpecimenConditionsType / diggs:diameter
Namespace http://diggsml.org/schemas/3
Annotations

For cylindrical specimens, a measure of the
cylinder's diameter
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

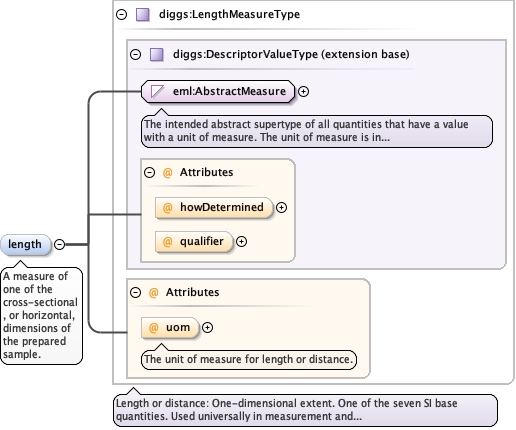

Element diggs:GroutSpecimenConditionsType / diggs:length
Namespace http://diggsml.org/schemas/3
Annotations

A measure of one of the cross-sectional, or
horizontal, dimensions of the prepared
sample.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenConditionsType / diggs:width
Namespace http://diggsml.org/schemas/3
Annotations

A measure of the other of the cross-sectional, or
horizontal, dimensions of the prepared
sample
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

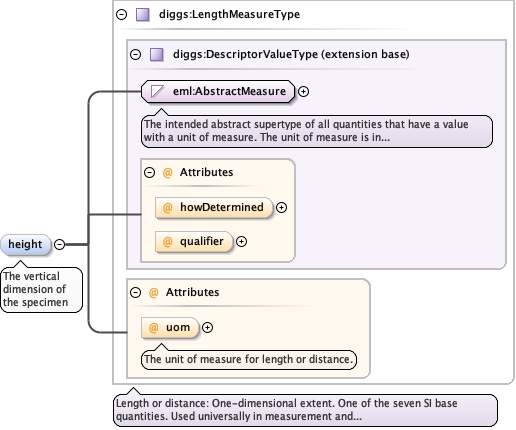

Element diggs:GroutSpecimenConditionsType / diggs:height
Namespace http://diggsml.org/schemas/3
Annotations

The vertical dimension of the specimen
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenConditionsType / diggs:shape
Namespace http://diggsml.org/schemas/3
Annotations

The shape of the specimen being tested, defined by the
following controlled terms: 1) cylinder; 2) cube 3) cuboid - a
square cylinder or cube with uneven sides; 4) non-solid - sample is
a paste, liquid, or gas with no defined shape; 5)
sphere
Diagram
DiagramCore_xsd_Simple_Type_diggs_SpecimenShapeType.tmp#SpecimenShapeType
Type diggs:SpecimenShapeType
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

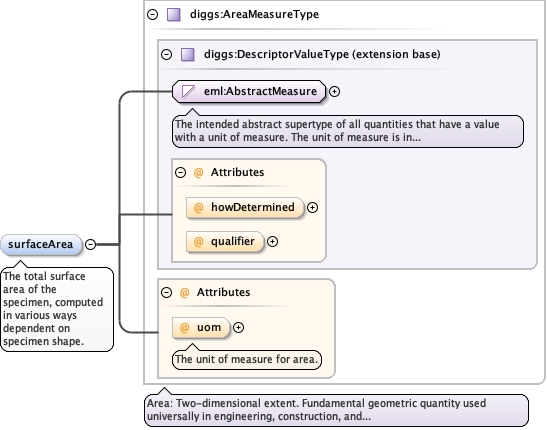

Element diggs:GroutSpecimenConditionsType / diggs:surfaceArea
Namespace http://diggsml.org/schemas/3
Annotations

The total surface area of the specimen, computed in
various ways dependent on specimen shape.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

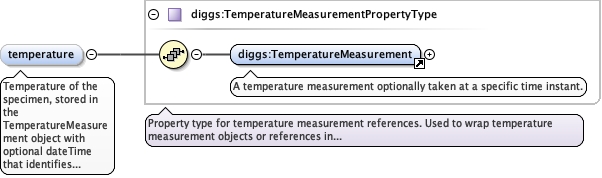

Element diggs:GroutSpecimenConditionsType / diggs:temperature
Namespace http://diggsml.org/schemas/3
Annotations

Temperature of the specimen, stored in the
TemperatureMeasurement object with optional dateTime that identifies
specific time instant for the measurement. Multiple temperature
measurements are permitted.
Diagram
DiagramCommon_xsd_Element_diggs_TemperatureMeasurement.tmp#TemperatureMeasurementCommon_xsd_Complex_Type_diggs_TemperatureMeasurementPropertyType.tmp#TemperatureMeasurementPropertyType
Type diggs:TemperatureMeasurementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TemperatureMeasurement
Instance

<diggs:temperature xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TemperatureMeasurement gml:id="">{1,1}</diggs:TemperatureMeasurement>
</diggs:temperature>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenConditionsType / diggs:volume
Namespace http://diggsml.org/schemas/3
Annotations

The volume of the specimen.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

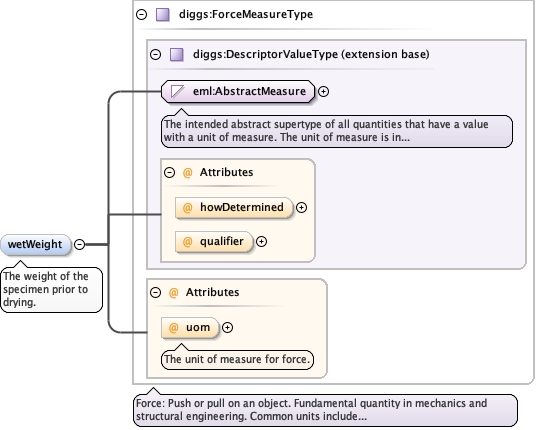

Element diggs:GroutSpecimenConditionsType / diggs:wetWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the specimen prior to
drying.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutSpecimenConditionsType / diggs:wtBleedWater
Namespace http://diggsml.org/schemas/3
Annotations

The weight of bleed water that occurs during curing,
generally determined by weighing the specimen before and after
draining the bleed water off the sample.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

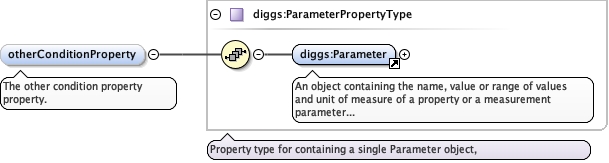

Element diggs:GroutSpecimenConditionsType / diggs:otherConditionProperty
Namespace http://diggsml.org/schemas/3
Annotations

The other condition property property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherConditionProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherConditionProperty>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

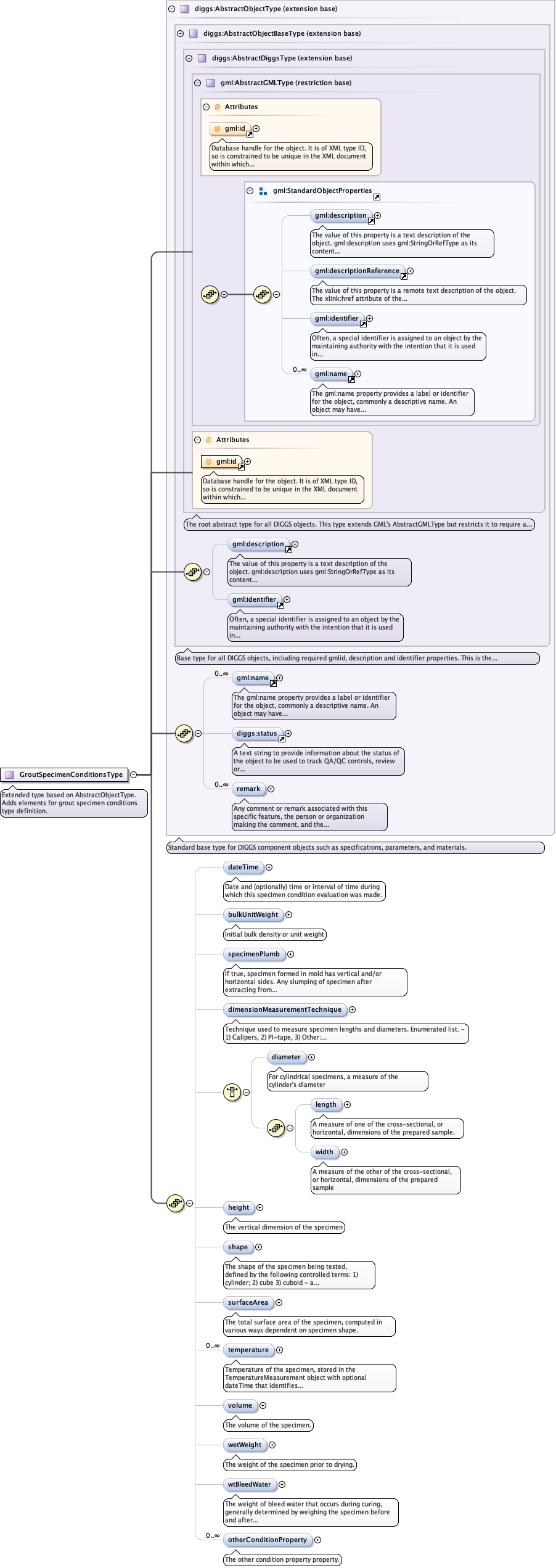

Complex Type diggs:GroutSpecimenConditionsType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for grout specimen conditions type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dateTimeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_bulkUnitWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_specimenPlumbGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dimensionMeasurementTechniqueGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_diameterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_lengthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_widthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_heightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_shapeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_surfaceAreaGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_temperatureGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_volumeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wetWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wtBleedWaterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_otherConditionProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bulkUnitWeight, diggs:dateTime, diggs:diameter, diggs:dimensionMeasurementTechnique, diggs:height, diggs:length, diggs:otherConditionProperty, diggs:remark, diggs:shape, diggs:specimenPlumb, diggs:status, diggs:surfaceArea, diggs:temperature, diggs:volume, diggs:wetWeight, diggs:width, diggs:wtBleedWater, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
