Element diggs:GroutPumpType / diggs:inletPipeSize
Namespace http://diggsml.org/schemas/3
Annotations

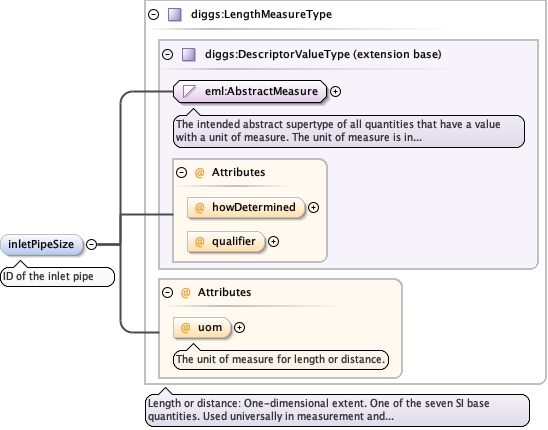

ID of the inlet pipe
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:maxFlow
Namespace http://diggsml.org/schemas/3
Annotations

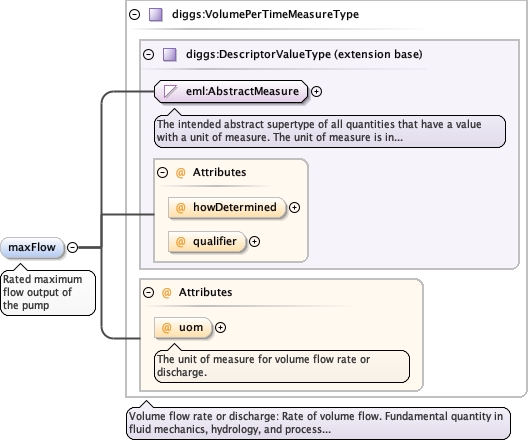

Rated maximum flow output of the pump
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:maxGrainsize
Namespace http://diggsml.org/schemas/3
Annotations

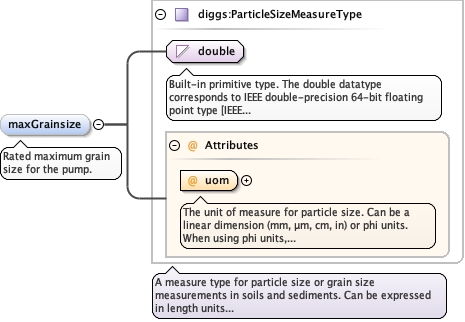

Rated maximum grain size for the pump.
Diagram
DiagramMeasureTypes_xsd_Complex_Type_diggs_ParticleSizeMeasureType.tmp#ParticleSizeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ParticleSizeMeasureType.tmp#ParticleSizeMeasureType
Type diggs:ParticleSizeMeasureType
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
uom diggs:DiggsParticleSizeUomEnumType required
The unit of measure for particle size. Can be a linear dimension (mm, μm, cm, in) or phi units. When using phi units, smaller values represent larger particles (e.g., -1 phi = 2mm, 0 phi = 1mm, 4 phi = 0.0625mm).
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:maxPressure
Namespace http://diggsml.org/schemas/3
Annotations

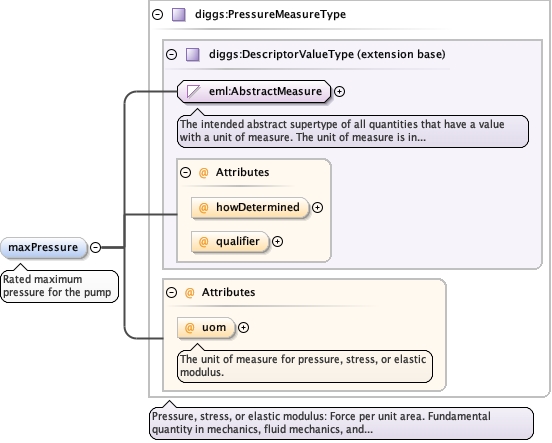

Rated maximum pressure for the pump
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:numberOfPistons
Namespace http://diggsml.org/schemas/3
Annotations

Number of pistons (for piston pumps)
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:outletPipeSize
Namespace http://diggsml.org/schemas/3
Annotations

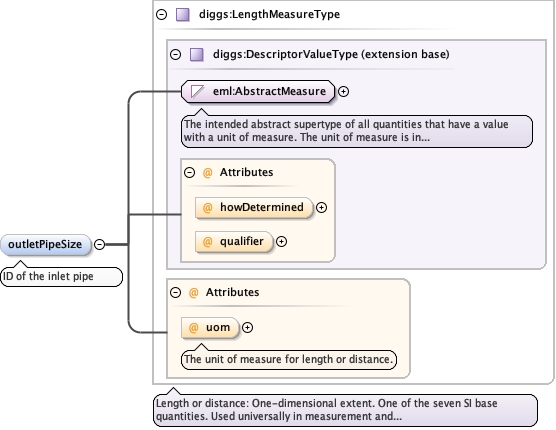

ID of the inlet pipe
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:pistonDiameter
Namespace http://diggsml.org/schemas/3
Annotations

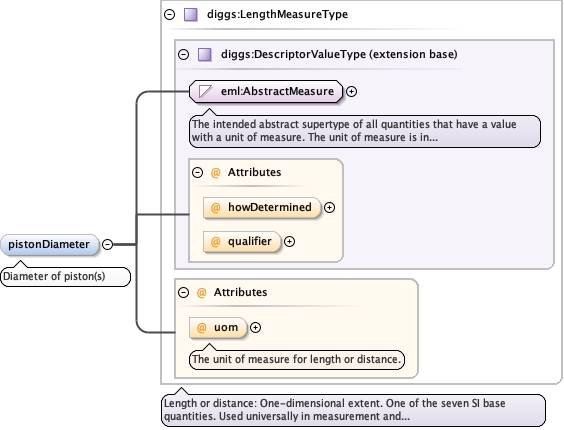

Diameter of piston(s)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:pistonStroke
Namespace http://diggsml.org/schemas/3
Annotations

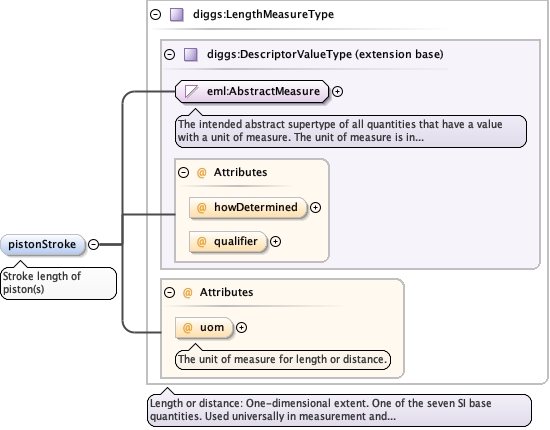

Stroke length of piston(s)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

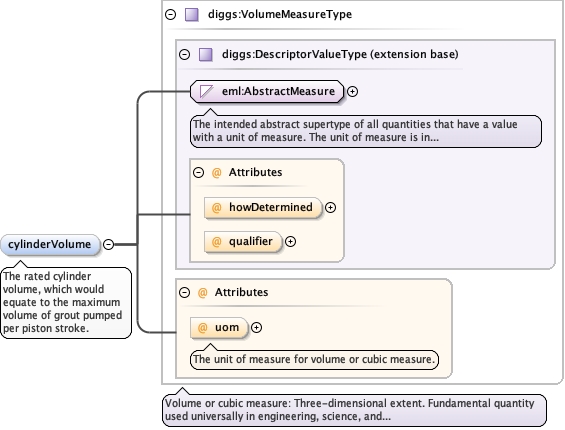

Element diggs:GroutPumpType / diggs:cylinderVolume
Namespace http://diggsml.org/schemas/3
Annotations

The rated cylinder volume, which would equate to the
maximum volume of grout pumped per piston stroke.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:type
Namespace http://diggsml.org/schemas/3
Annotations

Type of pump, ie. piston, plunger, pneumatic, screw, twin
stream, rocker, etc. Intended to come from a controlled list of
terms
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:enginePower
Namespace http://diggsml.org/schemas/3
Annotations

The rated power of the grout pump engine.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PowerMeasureType.tmp#PowerMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PowerMeasureType.tmp#PowerMeasureType
Type diggs:PowerMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PowerUomEnumType optional
The unit of measure for power or rate of energy transfer.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

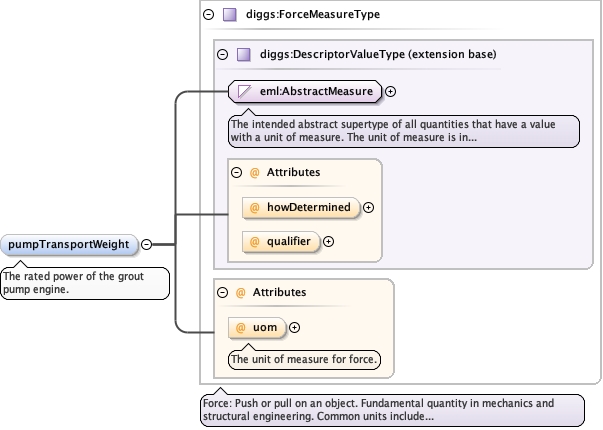

Element diggs:GroutPumpType / diggs:pumpTransportWeight
Namespace http://diggsml.org/schemas/3
Annotations

The rated power of the grout pump engine.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:GroutPumpType / diggs:pressureFlowCurveData
Namespace http://diggsml.org/schemas/3
Annotations

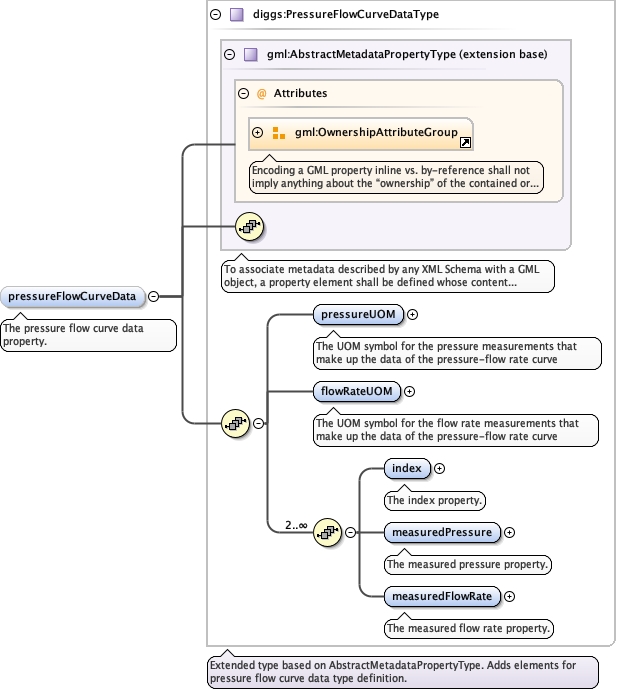

The pressure flow curve data property.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_pressureUOMGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_flowRateUOMGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_indexGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredPressureGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredFlowRateGrouting_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType
Type diggs:PressureFlowCurveDataType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:flowRateUOM, diggs:index, diggs:measuredFlowRate, diggs:measuredPressure, diggs:pressureUOM
Instance

<diggs:pressureFlowCurveData owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:pressureUOM>{1,1}</diggs:pressureUOM>
  <diggs:flowRateUOM>{1,1}</diggs:flowRateUOM>
  <diggs:index>{1,1}</diggs:index>
  <diggs:measuredPressure>{1,1}</diggs:measuredPressure>
  <diggs:measuredFlowRate>{1,1}</diggs:measuredFlowRate>
</diggs:pressureFlowCurveData>
Attributes
QName Type Default Use
owns boolean false optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

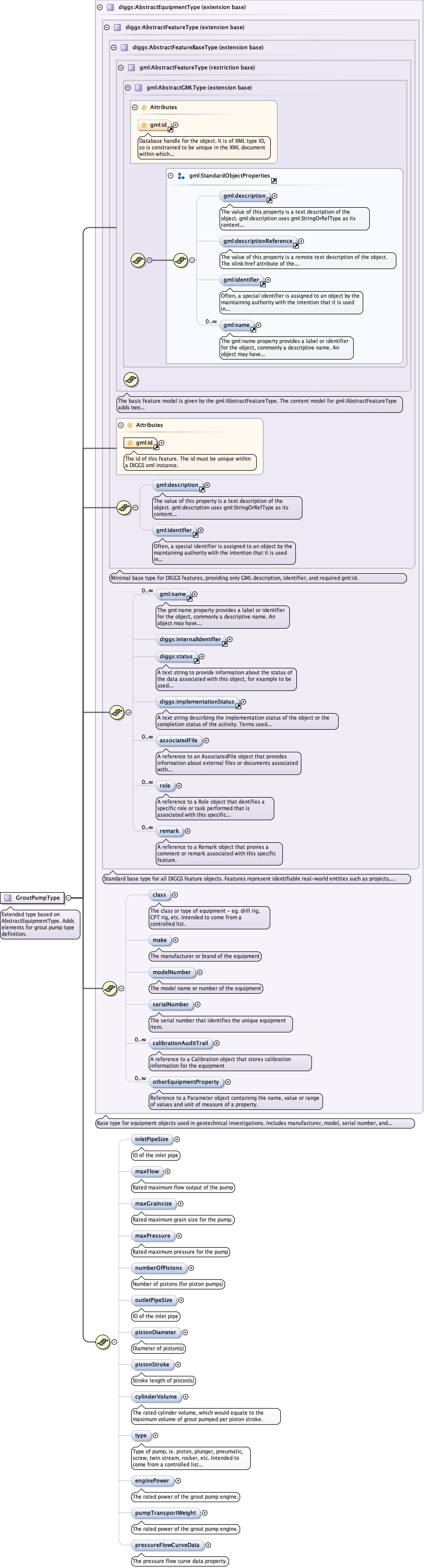

Complex Type diggs:GroutPumpType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractEquipmentType. Adds elements for grout pump type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_inletPipeSizeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxFlowGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxGrainsizeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxPressureGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_numberOfPistonsGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_outletPipeSizeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pistonDiameterGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pistonStrokeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_cylinderVolumeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_typeGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_enginePowerGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pumpTransportWeightGrouting_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pressureFlowCurveData
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Element diggs:GroutPump
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:cylinderVolume, diggs:enginePower, diggs:implementationStatus, diggs:inletPipeSize, diggs:internalIdentifier, diggs:make, diggs:maxFlow, diggs:maxGrainsize, diggs:maxPressure, diggs:modelNumber, diggs:numberOfPistons, diggs:otherEquipmentProperty, diggs:outletPipeSize, diggs:pistonDiameter, diggs:pistonStroke, diggs:pressureFlowCurveData, diggs:pumpTransportWeight, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, diggs:type, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
