Showing:

Annotations
Attributes
Diagrams
Facets
Instances
Model
Properties
Used by
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:minimumDepthBelowLS
Namespace http://diggsml.org/schemas/3
Annotations

The minimum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

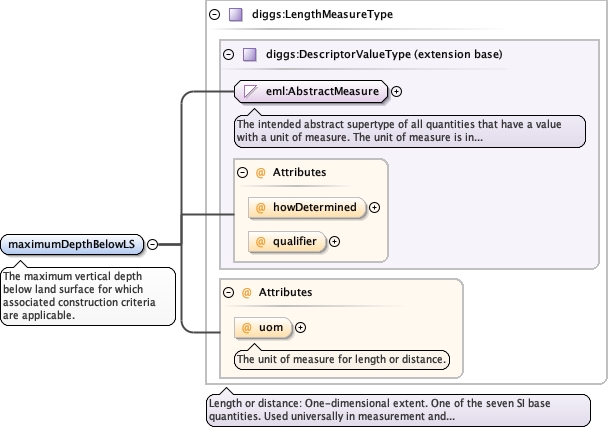

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:maximumDepthBelowLS
Namespace http://diggsml.org/schemas/3
Annotations

The maximum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

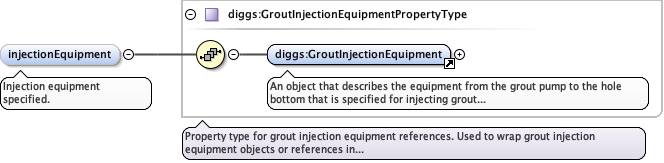

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionEquipment
Namespace http://diggsml.org/schemas/3
Annotations

Injection equipment specified.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentPropertyType.tmp#GroutInjectionEquipmentPropertyType
Type diggs:GroutInjectionEquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutInjectionEquipment
Instance

<diggs:injectionEquipment xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutInjectionEquipment gml:id="">{1,1}</diggs:GroutInjectionEquipment>
</diggs:injectionEquipment>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

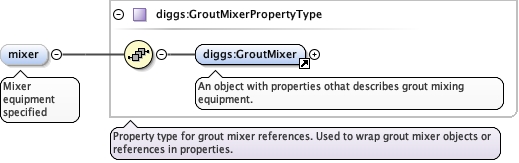

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:mixer
Namespace http://diggsml.org/schemas/3
Annotations

Mixer equipment specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutMixer.tmp#GroutMixerGrouting_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutMixer gml:id="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

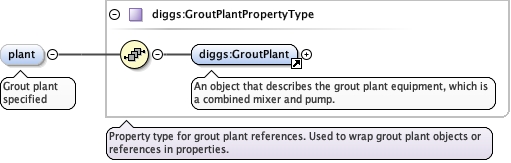

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:plant
Namespace http://diggsml.org/schemas/3
Annotations

Grout plant specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutPlant.tmp#GroutPlantGrouting_xsd_Complex_Type_diggs_GroutPlantPropertyType.tmp#GroutPlantPropertyType
Type diggs:GroutPlantPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPlant
Instance

<diggs:plant xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutPlant gml:id="">{1,1}</diggs:GroutPlant>
</diggs:plant>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

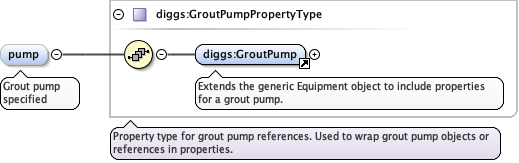

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pump
Namespace http://diggsml.org/schemas/3
Annotations

Grout pump specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutPump.tmp#GroutPumpGrouting_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutPump gml:id="">{1,1}</diggs:GroutPump>
</diggs:pump>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

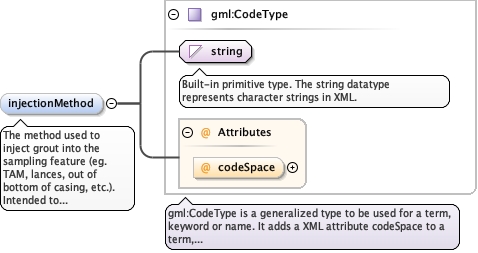

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionMethod
Namespace http://diggsml.org/schemas/3
Annotations

The method used to inject grout into the sampling feature
(eg. TAM, lances, out of bottom of casing, etc.). Intended to come
from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

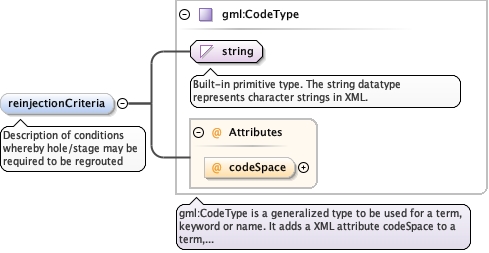

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:reinjectionCriteria
Namespace http://diggsml.org/schemas/3
Annotations

Description of conditions whereby hole/stage may be
required to be regrouted
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingRequired
Namespace http://diggsml.org/schemas/3
Annotations

Set to true here, grouting parameters are
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:recordingParameter
Namespace http://diggsml.org/schemas/3
Annotations

Grouting parameter to be recorded digitally (eg.
flow, pressure). Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingNotRequired
Namespace http://diggsml.org/schemas/3
Annotations

Set to true here, grouting parameters are NOT
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

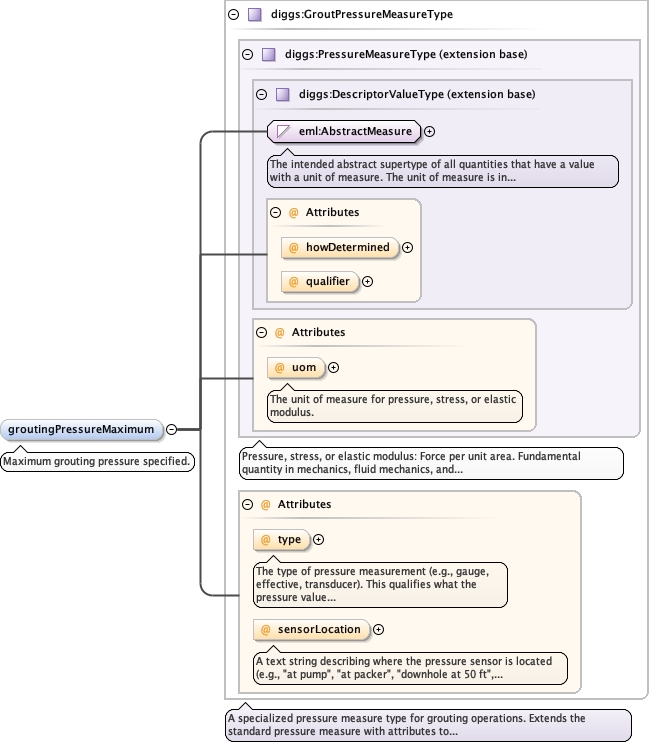

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum grouting pressure specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
sensorLocation string optional
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
type diggs:PressureTypeEnumType optional
The type of pressure measurement (e.g., gauge, effective, transducer). This qualifies what the pressure value represents in the grouting operation.
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

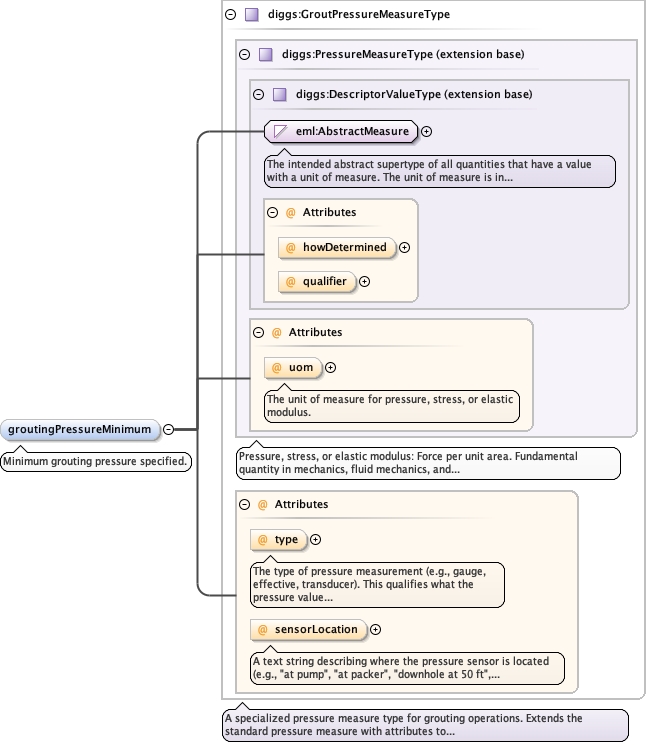

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum grouting pressure specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
sensorLocation string optional
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
type diggs:PressureTypeEnumType optional
The type of pressure measurement (e.g., gauge, effective, transducer). This qualifies what the pressure value represents in the grouting operation.
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

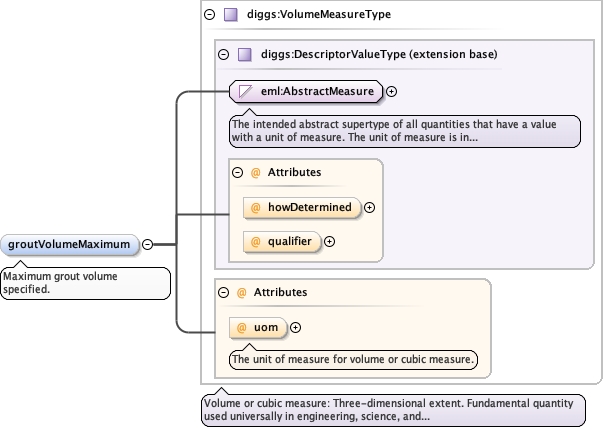

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum grout volume specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

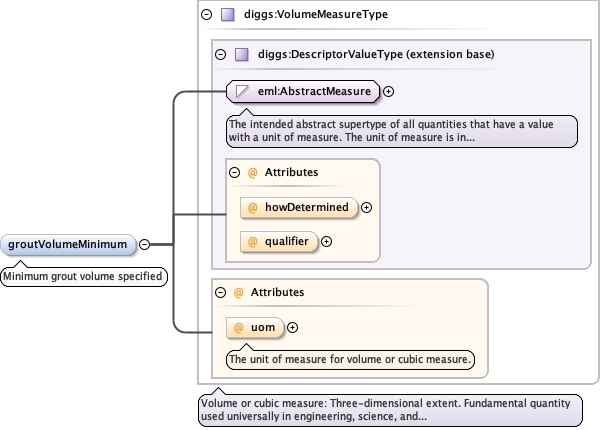

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum grout volume specified
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

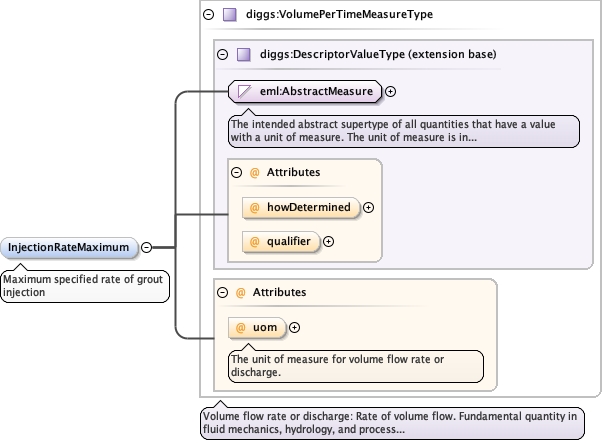

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:InjectionRateMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum specified rate of grout injection
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionRateMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum specified rate of grout injection
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pressureControlLogic
Namespace http://diggsml.org/schemas/3
Annotations

Property defining how grout injection is to be
controlled, either by constant flow or constant pressure. From an
enumerated list.
Diagram
DiagramGrouting_xsd_Simple_Type_diggs_pressureControlLogicEnumType.tmp#pressureControlLogicEnumType
Type diggs:pressureControlLogicEnumType
Properties
content simple
minOccurs 0
Facets
enumeration constant flow
constant flow - constant flow value.
enumeration constant pressure
constant pressure - constant pressure value.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd

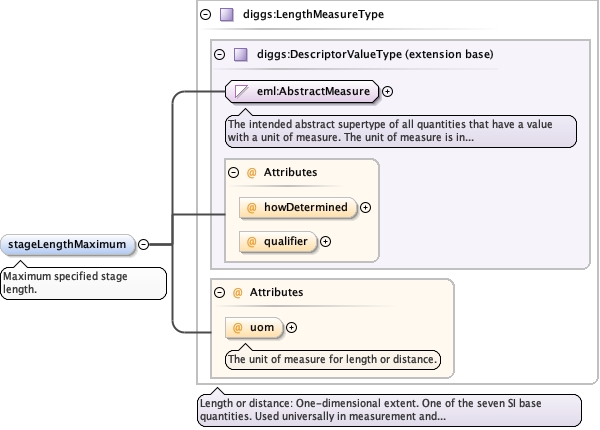

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum specified stage length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum specified stage length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
Complex Type diggs:DepthDependentGroutConstructionCriteriaType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractMetadataPropertyType. Adds elements for depth dependent grout construction criteria type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_minimumDepthBelowLSGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_maximumDepthBelowLSGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionEquipmentGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_mixerGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_plantGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pumpGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionMethodGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_reinjectionCriteriaGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingRequiredGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_recordingParameterGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingNotRequiredGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMaximumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMinimumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMaximumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMinimumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_InjectionRateMaximumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionRateMinimumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pressureControlLogicGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMaximumGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMinimum
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:InjectionRateMaximum, diggs:digitalRecordingNotRequired, diggs:digitalRecordingRequired, diggs:groutVolumeMaximum, diggs:groutVolumeMinimum, diggs:groutingPressureMaximum, diggs:groutingPressureMinimum, diggs:injectionEquipment, diggs:injectionMethod, diggs:injectionRateMinimum, diggs:maximumDepthBelowLS, diggs:minimumDepthBelowLS, diggs:mixer, diggs:plant, diggs:pressureControlLogic, diggs:pump, diggs:recordingParameter, diggs:reinjectionCriteria, diggs:stageLengthMaximum, diggs:stageLengthMinimum
Attributes
QName Type Default Use
owns boolean false optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
XML Schema documentation generated by ® XML Editor.
