Element diggs:ProcessingStepType / diggs:associatedFile
Namespace http://diggsml.org/schemas/3
Annotations

A reference to an AssociatedFile object that provides
information about external files or documents associated with this
processing step. The target value is indicated in the appinfo
element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_AssociatedFile.tmp#AssociatedFileCommon_xsd_Complex_Type_diggs_AssociatedFilePropertyType.tmp#AssociatedFilePropertyType
Type diggs:AssociatedFilePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AssociatedFile
Instance

<diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AssociatedFile gml:id="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd

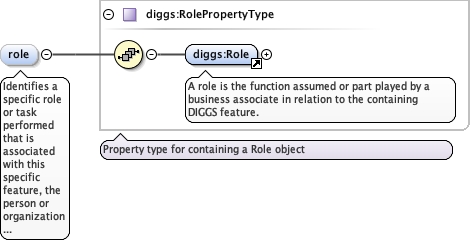

Element diggs:ProcessingStepType / diggs:role
Namespace http://diggsml.org/schemas/3
Annotations

Identifies a specific role or task performed that is
associated with this specific feature, the person or organization
that performed the role, and associated time frame, if
applicable.
Diagram
DiagramCommon_xsd_Element_diggs_Role.tmp#http___diggsml.org_schemas_3_RoleCommon_xsd_Complex_Type_diggs_RolePropertyType.tmp#RolePropertyType
Type diggs:RolePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Role
Instance

<diggs:role xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd

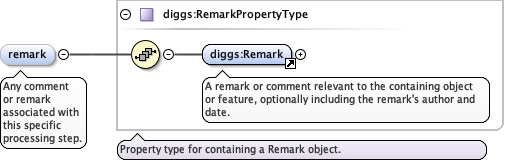

Element diggs:ProcessingStepType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

Any comment or remark associated with this specific
processing step.
Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd
Element diggs:ProcessingStepType / diggs:equipment
Namespace http://diggsml.org/schemas/3
Annotations

A property element that supports a value by reference
only. The target value is indicated in the appinfo
element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:equipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{0,1}</diggs:AbstractEquipment>
</diggs:equipment>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd

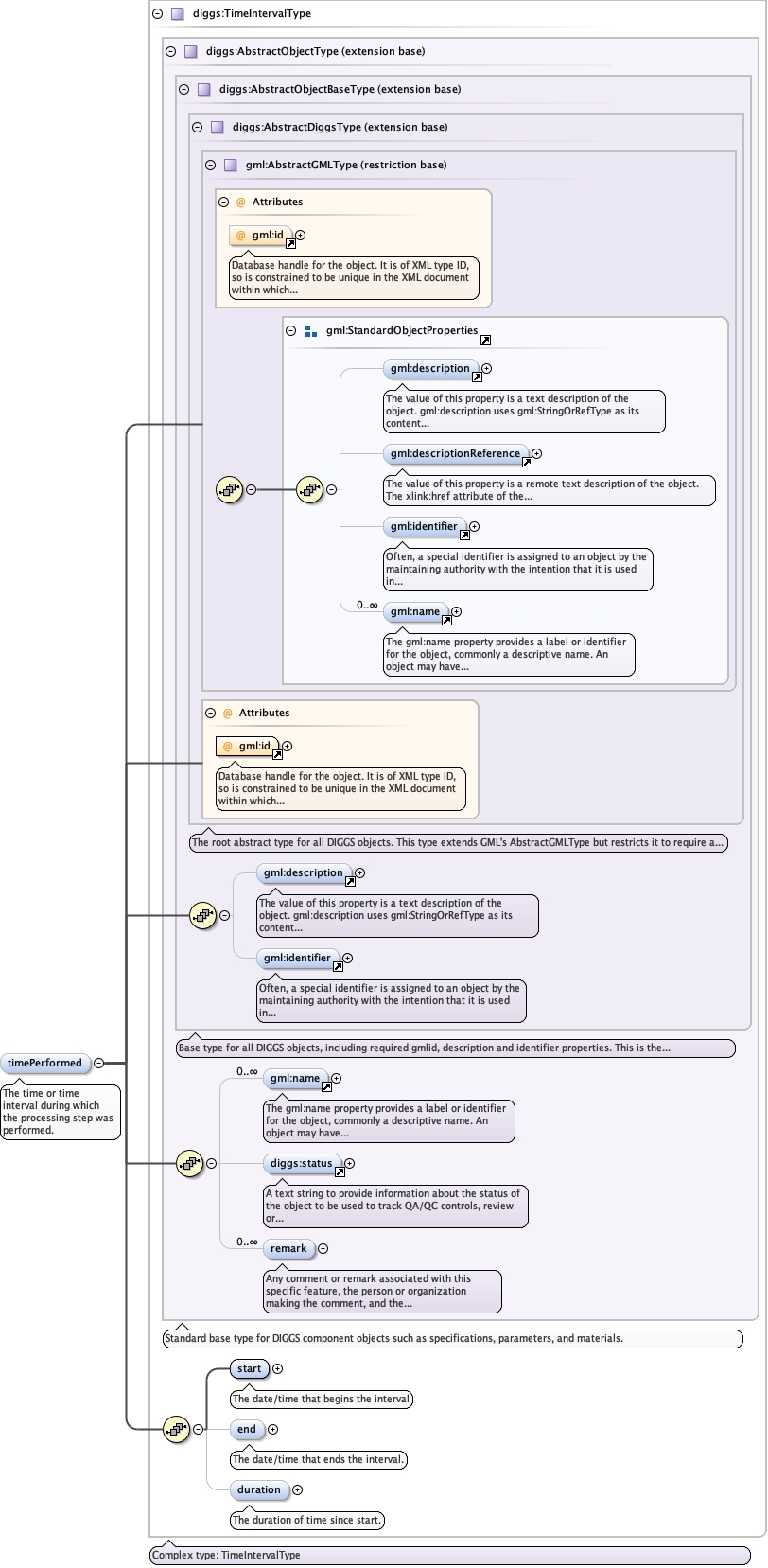

Element diggs:ProcessingStepType / diggs:timePerformed
Namespace http://diggsml.org/schemas/3
Annotations

The time or time interval during which the processing
step was performed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_durationCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType
Type diggs:TimeIntervalType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:timePerformed gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:start calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:start>
  <diggs:end calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:end>
  <diggs:duration howDetermined="" qualifier="" uom="">{0,1}</diggs:duration>
</diggs:timePerformed>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd
Element diggs:ProcessingStepType / diggs:processStepDescription
Namespace http://diggsml.org/schemas/3
Annotations

A narrative description of the processing
step
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd

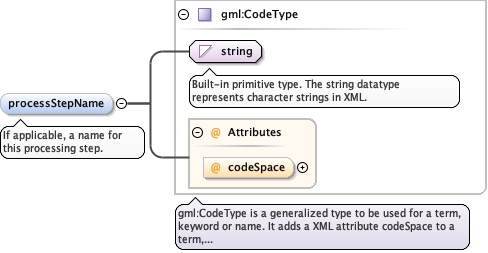

Element diggs:ProcessingStepType / diggs:processStepName
Namespace http://diggsml.org/schemas/3
Annotations

If applicable, a name for this processing
step.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd

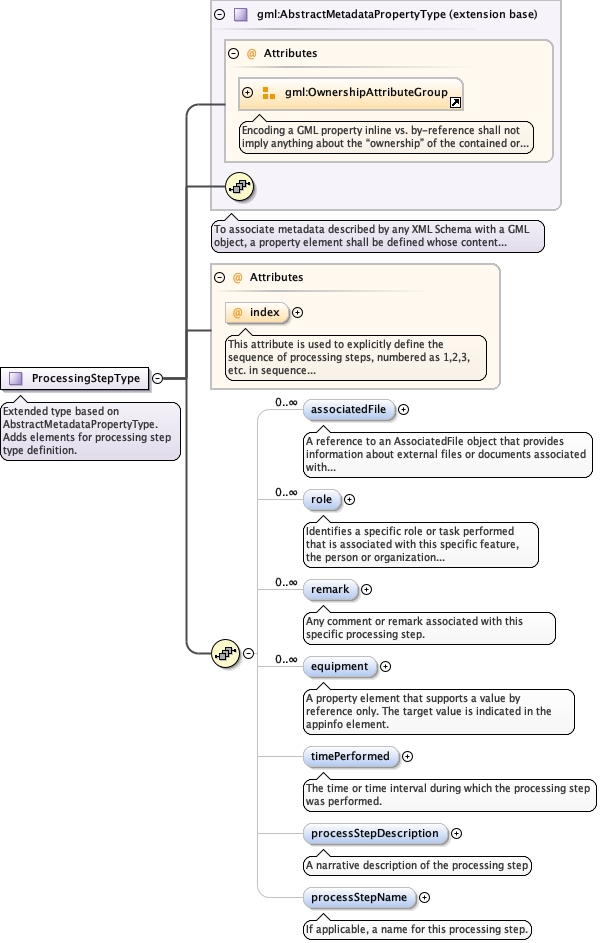

Complex Type diggs:ProcessingStepType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractMetadataPropertyType. Adds elements for processing step type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_indexGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_associatedFileGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_roleGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_remarkGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_equipmentGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_timePerformedGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_processStepDescriptionGeophysics_xsd_Complex_Type_diggs_ProcessingStepType.tmp#ProcessingStepType_processStepName
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:equipment, diggs:processStepDescription, diggs:processStepName, diggs:remark, diggs:role, diggs:timePerformed
Attributes
QName Type Default Use Annotation
index positiveInteger optional
This attribute is used to explicitly define the sequence of
processing steps, numbered as 1,2,3, etc. in sequence order. If omitted,
the processing sequence is assumed to follow the order of the
ProcessingStep
owns boolean false optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd
Attribute diggs:ProcessingStepType / @index
Namespace No namespace
Annotations

This attribute is used to explicitly define the sequence of
processing steps, numbered as 1,2,3, etc. in sequence order. If omitted,
the processing sequence is assumed to follow the order of the
ProcessingStep
Type positiveInteger
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Geophysics.xsd
